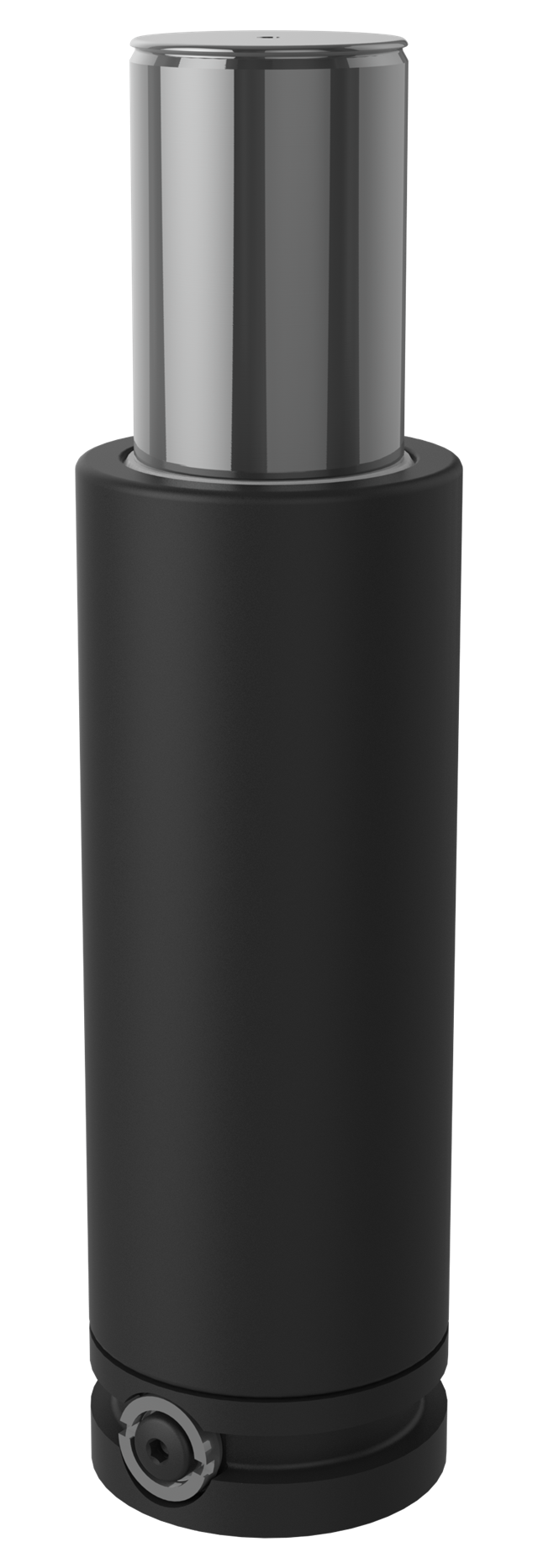

T5-SP-1900X63
T5-1900 provides full stroke force between 26,300 N 5,920 lbf) and 35,600 N (8,000 lbf) and is available in 7 stroke lengths.
SPT5-1900 operate in both hosed systems and as self contained solutions. To foot T5 gas spring series when using SPT5 side port adapter plater, use Lower Square Flange (FFC flange): SPT5-1900 use FFC-750. Available as an add-on or pre-assembled solution. All strokes are offered as a part of the HYSON Preferred Program which provides optimal delivery.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 5.59 |
| S | Stroke Length (in) | 2.48 |
| Y | Total Length (in) | 8.07 |
Item specifications
- End Force At Full Stroke (LBF)7820
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.006
- Initial Force at max. pressure (lbf) 4320
- Max Charging Pressure (Psi)2900
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 50-130
- Weight (lb)2.662
