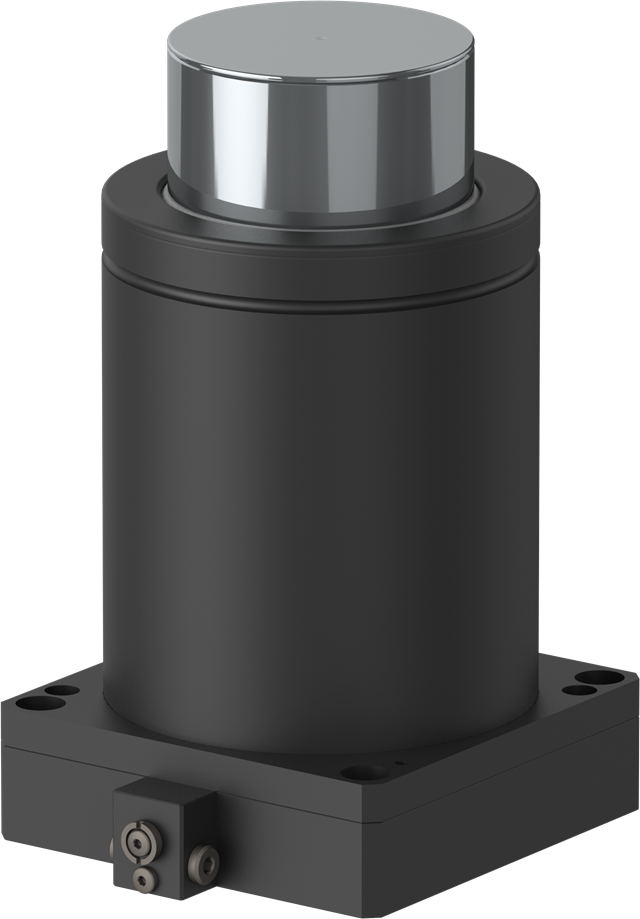

T4SC-SPRM-18300X10
T4SC-18300 provides full stroke force between 227,000 N (51,031 lbf) and 253,000 N (56,876 lbf) and is available in 7 stroke lengths.
Strokes 10, 16 and 25 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 18300 model are Circular Flange (FC-7500), Upper Square Flange (FCS-7500) and Bottom Square Flange (BF-18300). Additionally, Side Plate SP 18300 is compatible with the old generation T2SC.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 4.33 |
| S | Stroke Length (in) | 0.39 |
| Y | Total Length (in) | 4.72 |
Item specifications
- End Force At Full Stroke (LBF)51000
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.019776213
- Initial Force at max. pressure (lbf) 41140
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 80-100
- Weight (lb)27.544
