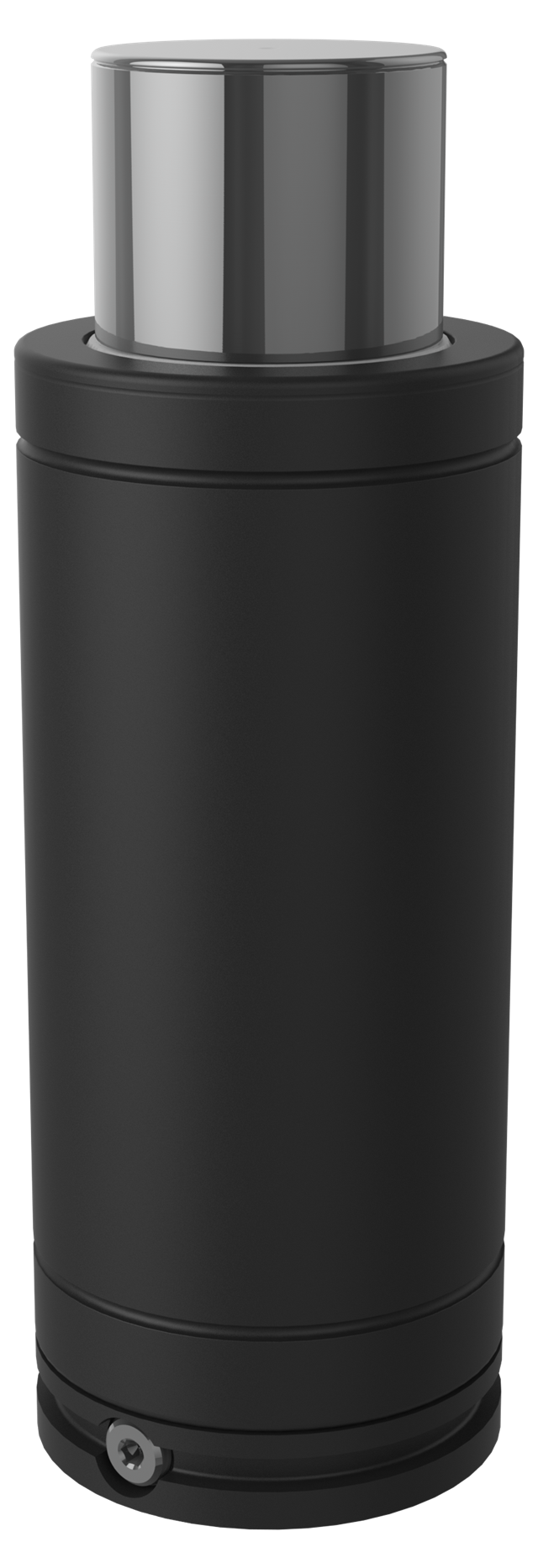

T4SC-SP-7500X25
T4SC-7500 provides full stroke force between 98,500 N (22,143 lbf) and 111,000 N (24,953 lbf) and is available in 7 stroke lengths.
Strokes 10, 16 and 25 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Stroke lengths of greater than 25 mm should be base or flange mounted. Available flanges are Upper Square Flange FK-3000 and Base Mount Square Flange BFP-7500. Addtionally, SP 7500 is offered. The T4SC-7500-SP adapter plate has no valve and can be pressurised only through a hose. It is delivered uncharged.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 5.51 |
| S | Stroke Length (in) | 0.98 |
| Y | Total Length (in) | 6.5 |
Item specifications
- End Force At Full Stroke (LBF)23380
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.014479013
- Initial Force at max. pressure (lbf) 16860
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 80-100
- Weight (lb)7.942
