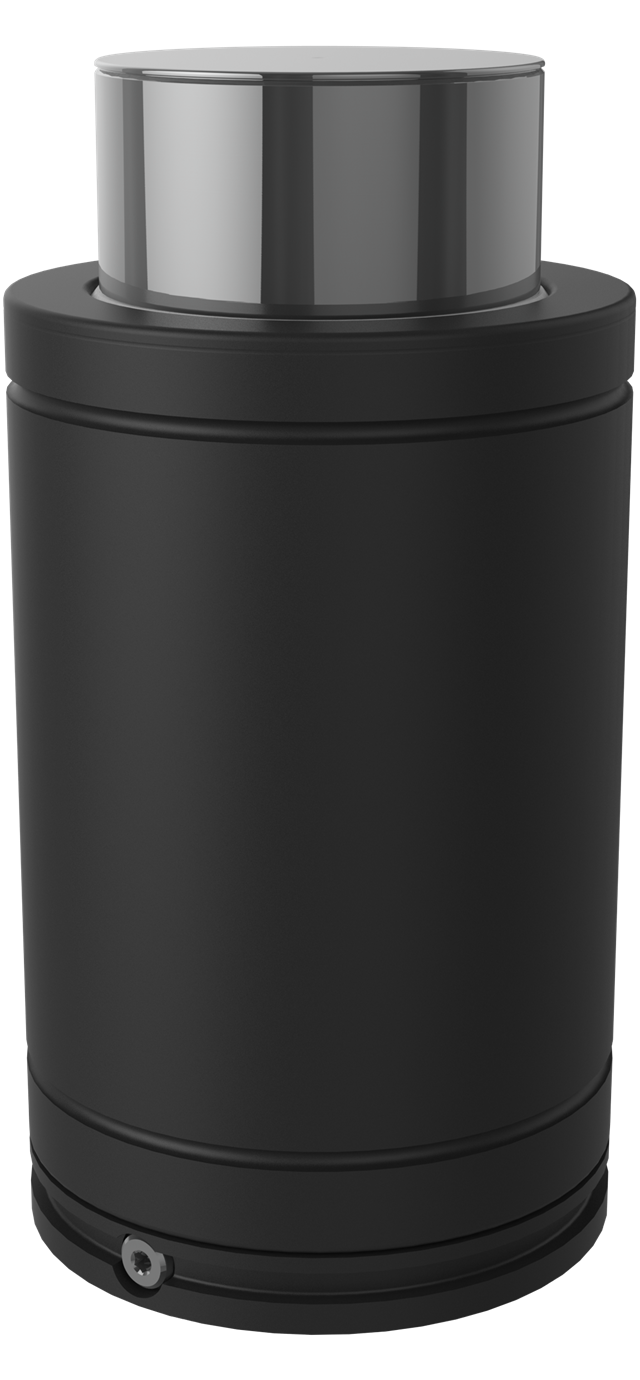

T4SC-SP-18300X32
T4SC-18300 provides full stroke force between 227,000 N (51,031 lbf) and 253,000 N (56,876 lbf) and is available in 7 stroke lengths.
Strokes 10, 16 and 25 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Stroke lengths of greater than 25 mm should be base or flange mounted. Available flanges are Circular Flange FC-7500, Upper Square Flange FCS-7500, and Base Mount Square Flange BF-18300. Addtionally, SP 18300 is offered. The T4SC-18300-SP adapter plate has no valve and can be pressurised only through a hose. It is delivered uncharged.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 7.28 |
| S | Stroke Length (in) | 1.26 |
| Y | Total Length (in) | 8.54 |
Item specifications
- End Force At Full Stroke (LBF)54900
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.051206267
- Initial Force at max. pressure (lbf) 41140
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 80-100
- Weight (lb)26.136
