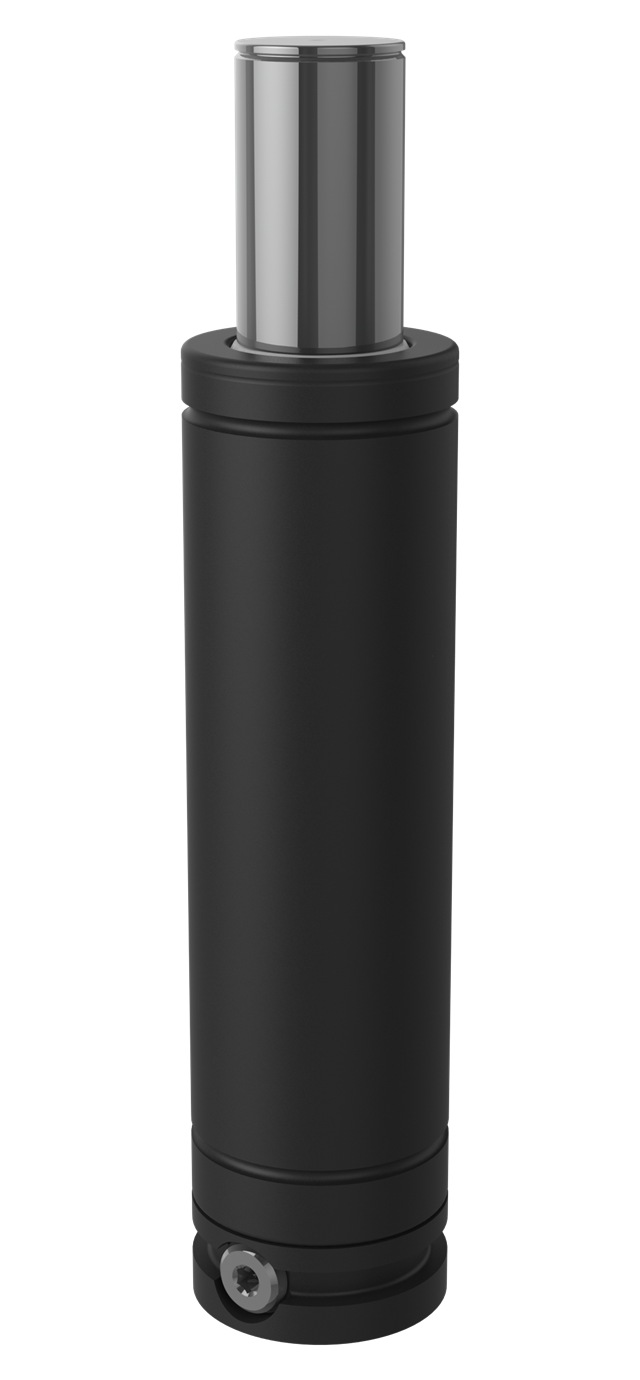

T4SC-SP-1800X25
T4SC-1800 provides full stroke force between 25,000 N (5,620 lbf) and 28,000 N (6,294 lbf) and is available in 8 stroke lengths.
Strokes 10, 16 and 25 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Stroke lengths of greater than 25 mm should be base or flange mounted. Available flanges are Upper Square Flange FK-1800 and Base Mount Square Flange BF-1800. Addtionally, SP 1800 is offered. The T4SC-1800-SP adapter plate has no valve and can be pressurised only through a hose. It is delivered uncharged.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 5.12 |
| S | Stroke Length (in) | 0.98 |
| Y | Total Length (in) | 6.1 |
Item specifications
- End Force At Full Stroke (LBF)5845
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.003531467
- Initial Force at max. pressure (lbf) 4050
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 100
- Weight (lb)2.046
