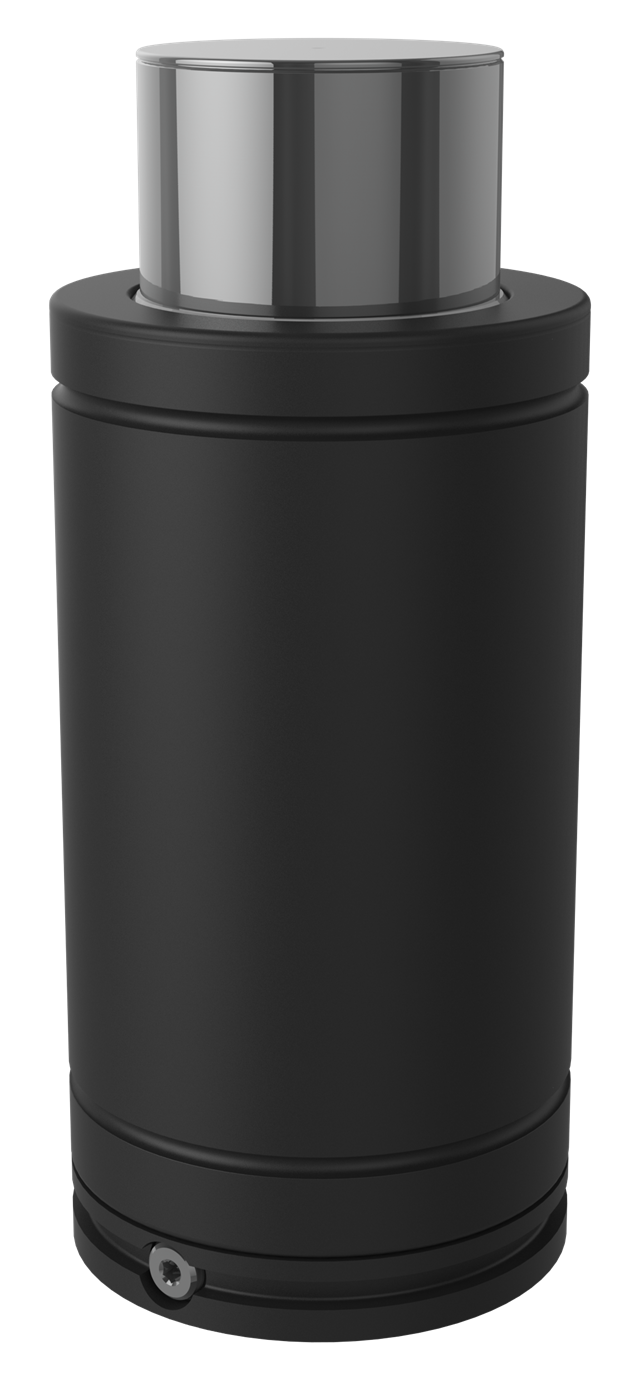

T4SC-SP-11800X40
T4SC-11800 provides full stroke force between 150,000 N (33,721 lbf) and 163,000 N (36,643 lbf) and is available in 7 stroke lengths.
Strokes 10, 16 and 25 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Stroke lengths of greater than 25 mm should be base or flange mounted. Available flanges are Circular Flange FC-5000, Upper Square Flange FCS-5000, and Base Mount Square Flange BF-11800. Addtionally, SP 11800 is offered. The T4SC-11800-SP adapter plate has no valve and can be pressurised only through a hose. It is delivered uncharged.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 7.87 |
| S | Stroke Length (in) | 1.57 |
| Y | Total Length (in) | 9.45 |
Item specifications
- End Force At Full Stroke (LBF)36000
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.035314667
- Initial Force at max. pressure (lbf) 26530
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 80-100
- Weight (lb)16.83
