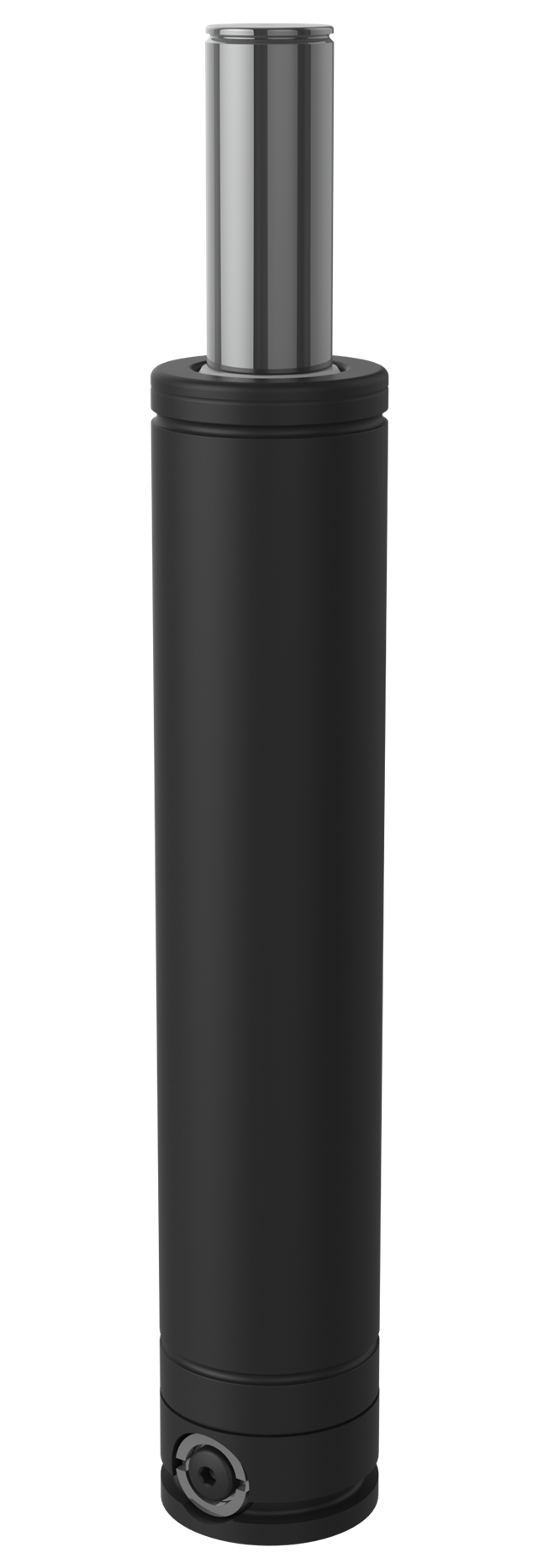

T4SC-SP-1000X10
T4SC-1000 provides full stroke force is 16,000 N (3,597 lbf) and is available in 7 stroke lengths.
Strokes 10, 16 and 25 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Stroke lengths of greater than 25 mm should be base or flange mounted. Available flanges are Circular Flange FC-250, Upper Square Flange FCS-250, and Base Mount Square Flange BF-1000. Addtionally, SP 1000 is offered. The T4SC-1000-SP adapter plate has no valve and can be pressurised only through a hose. It is delivered uncharged.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 3.46 |
| S | Stroke Length (in) | 0.39 |
| Y | Total Length (in) | 3.86 |
Item specifications
- End Force At Full Stroke (LBF)3595
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.000847552
- Initial Force at max. pressure (lbf) 2400
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 100
- Weight (lb)0.836
