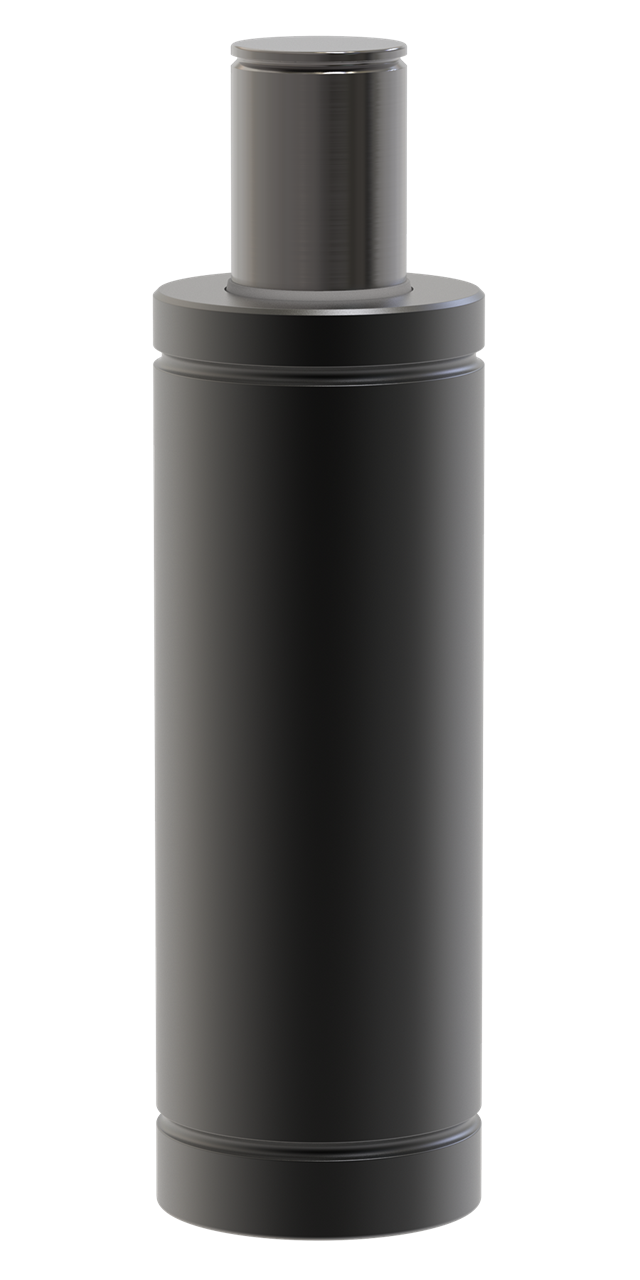

T4SC-1000X10
T4SC-1000 provides full stroke force is 16,000 N (3,597 lbf) and is available in 7 stroke lengths.
Strokes 10,16 and 25 are offered as a part of the HYSON Preferred Program which provides optimal delivery. We recommend stroke lengths of greater than 25mm should be base or flange monted. Available flanges for the 1000 model are Upper Square Flange FCS-250, Circular Flange FC-250, Base Mount Square Flange BF-1000 and a Side port plate SP-1000 (for use with hose systems)

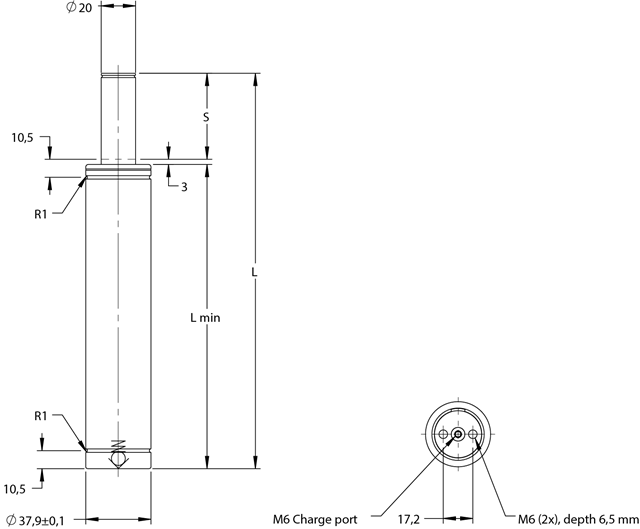

Diagram / specifications section
Preview
| L | Minimum Length (in) | 2.68 |
| S | Stroke Length (in) | 0.39 |
| Y | Total Length (in) | 3.07 |
Item specifications
- End Force At Full Stroke (LBF)3595
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.000847552
- Initial Force at max. pressure (lbf) 2400
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)157.48
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 100
- Weight (lb)0.836
