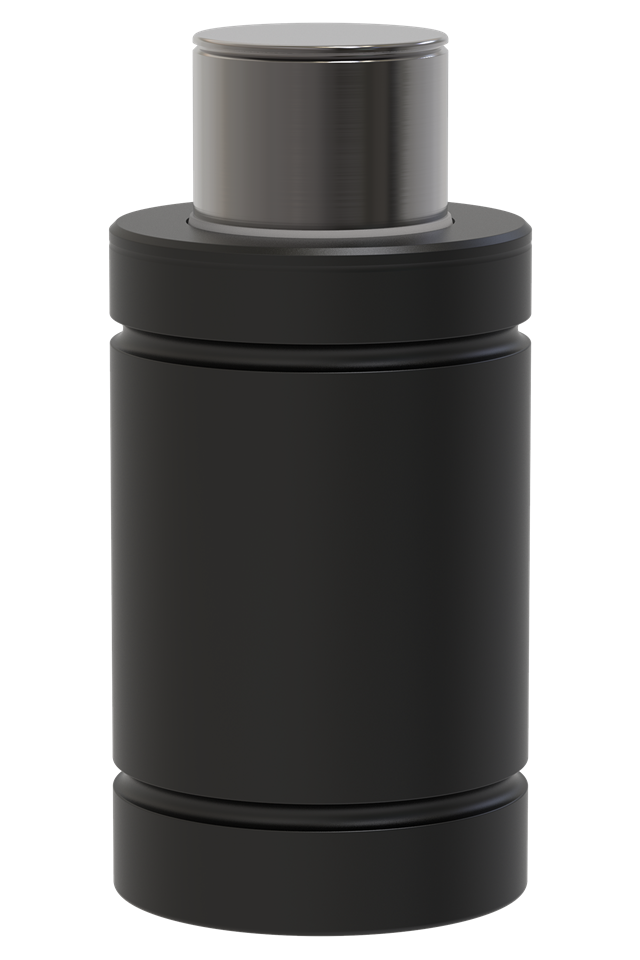

T4SC

The Hyson T4SC - Sub-compact Contamination Resistant Nitrogen Gas Spring is available in forces from 4,226 N (950 lbf) to 183,000 N (41,140 lbf). The T4SC is a bore seal gas spring that protects the sealing surface against contamination, even in instances of married rods. With THE HIGHEST FORCE PER BODY DIAMETER, T4SC Series is ideal for full height, short stroke, high-speed applications. T4SC gas springs can be hosed together and charged remotely using a control panel and hose system. A side port plate is required for hosed systems.
