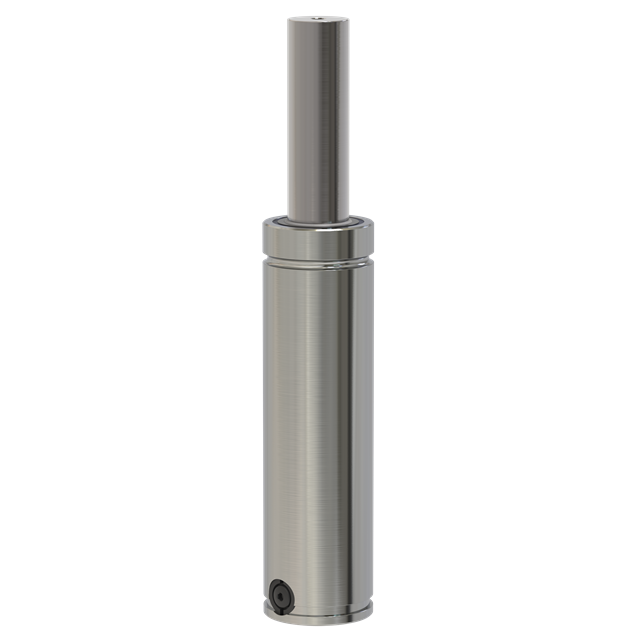

T4-750X100
T4-750 provides full stroke force between 12,000 N (2,700 lbf) and 12,100 N (2,720 lbf) and is available in 13 stroke lengths.
Strokes 10,16 and 25 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 750 model are Upper Square Flange (FCS-500), Circular Flange (FC-500), Lower Square Flange (FFC-500), Bottom Mounting Plate (MP-500) and Support Mount (S-500).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 7.28 |
| S | Stroke Length (in) | 3.94 |
| Y | Total Length (in) | 11.22 |
Item specifications
- End Force At Full Stroke (LBF)2700
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.0052
- Initial Force at max. pressure (lbf) 1665
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~15-100
- Weight (lb)3.102
