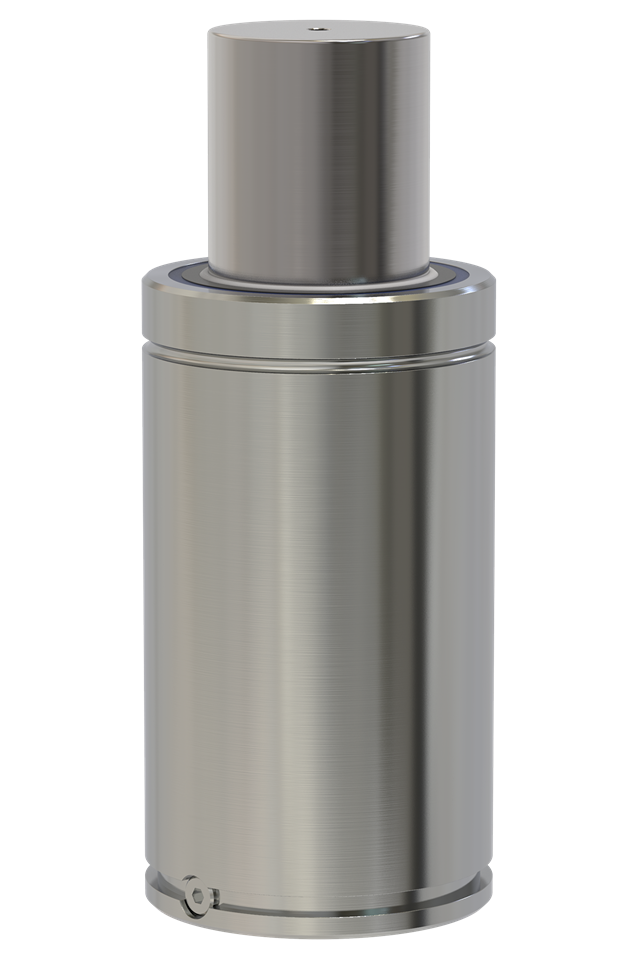

T4-6600X100
T4-6600 provides full stroke force between 79,500 N (17,900 lbf) and 105,300 N (23,700 lbf) and is available in 14 stroke lengths.
Strokes 25, 38, 50, 80, 100, and 125 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 6600 model are Circular Flange (FC-5000), Upper Square Flange (FCS-5000), and Lower Square Flange (FFC-5000).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 9.45 |
| S | Stroke Length (in) | 3.94 |
| Y | Total Length (in) | 13.39 |
Item specifications
- End Force At Full Stroke (LBF)21500
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.05403144
- Initial Force at max. pressure (lbf) 14925
- Max Charging Pressure (Psi)2175.56606595
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362.594344325
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~30-100
- Weight (lb)27.126
