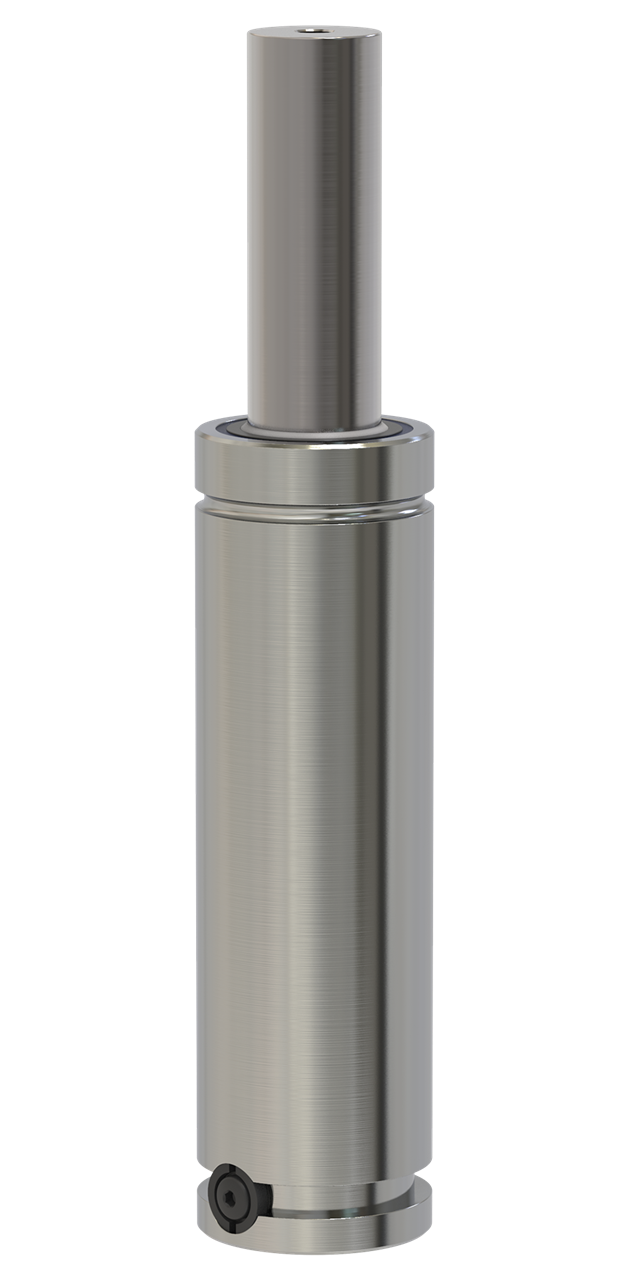

T4-1000X75
T4-1000 provides full stroke force between 11,200 N (2,525 lbf) and 14,900 N (3,350 lbf) and is available in 15 stroke lengths.
Strokes 10,16 and 25 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 1000 model are Upper Square Flange (FCS-750), Circular Flange (FC-750), Lower Square Flange (FFC-750), Bottom Mounting Plate (MP-750), Support Mount (S-750) and Horizontal Foot Mount (HM-750).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 6.69 |
| S | Stroke Length (in) | 2.95 |
| Y | Total Length (in) | 9.65 |
Item specifications
- End Force At Full Stroke (LBF)3075
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.0052
- Initial Force at max. pressure (lbf) 2075
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~50-100
- Weight (lb)3.762
