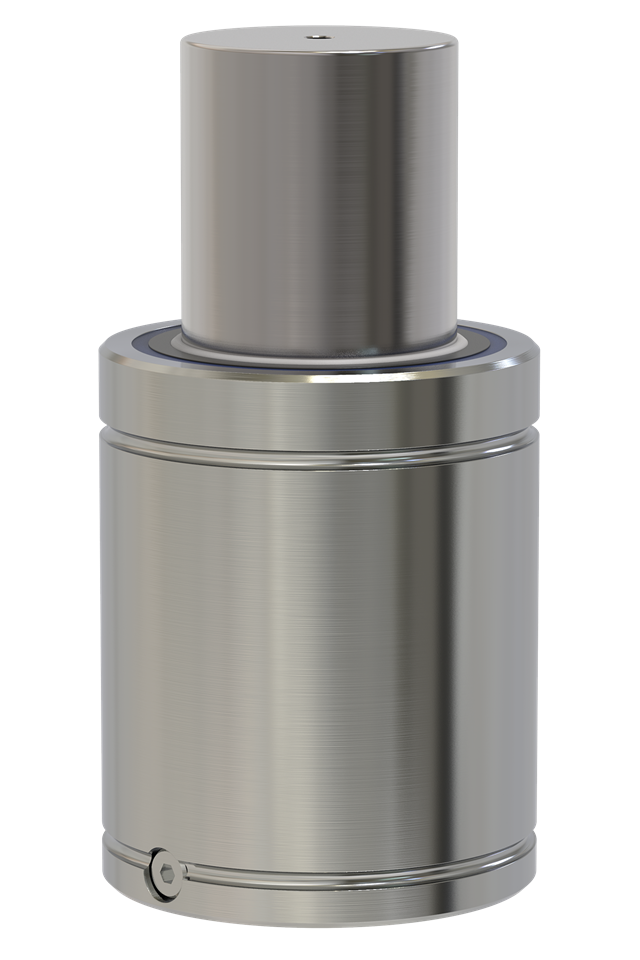

T3T-6600X63
T3T-6600 provides full stroke force between 89,000 N (20,010 lbf) and 106,500 N (23,945 lbf) and is available in 11 stroke lengths.
Strokes 50, 63, 75, and 100 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 6600 model are Circular Flange (FC-5000), Lower Square Flange (SF-5000), and Upper Square Flange (FCS-5000).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 5.31 |
| S | Stroke Length (in) | 2.48 |
| Y | Total Length (in) | 7.8 |
Item specifications
- End Force At Full Stroke (LBF)23020
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.029311173
- Initial Force at max. pressure (lbf) 14905
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~30-100
- Weight (lb)14.982
