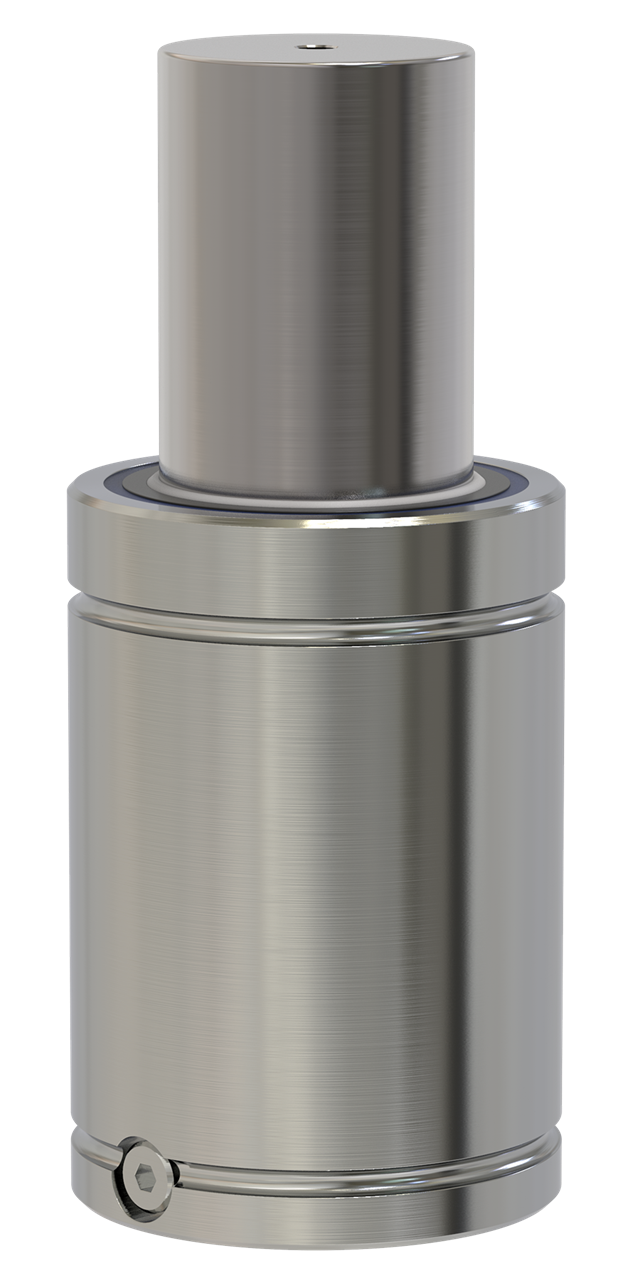

T3T-4200X38
T3T-4200 provides full stroke force between 60,800 N (13,760 lbf) and 69,600 N (15,645 lbf) and is available in 11 stroke lengths.
Strokes 38, 50, 63, and 100 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 4200 model are Circular Flange (FC-3000), Lower Square Flange (SF-3000), and Upper Square Flange (FCS-3000).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 3.94 |
| S | Stroke Length (in) | 1.5 |
| Y | Total Length (in) | 5.43 |
Item specifications
- End Force At Full Stroke (LBF)14790
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.011300693
- Initial Force at max. pressure (lbf) 9440
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~30-100
- Weight (lb)7.216
