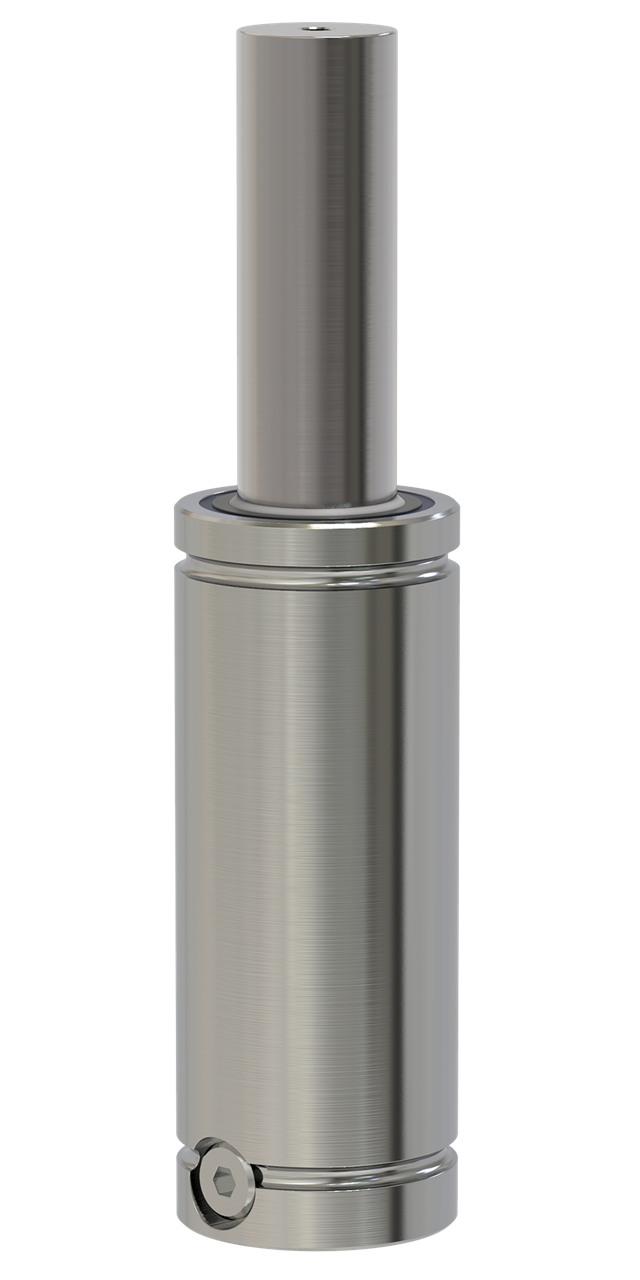

T3T-1000X100
T3T-1000 provides full stroke force between 13,800 N (3,105 lbf) and 14,800 N (3,325 lbf) and is available in 12 stroke lengths.
Strokes 38, 50, and 63 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 1000 model are Circular Flange (FC-750) and Upper Square Flange (FCS-750).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 5.98 |
| S | Stroke Length (in) | 3.94 |
| Y | Total Length (in) | 9.92 |
Item specifications
- End Force At Full Stroke (LBF)3327
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.006003493
- Initial Force at max. pressure (lbf) 2068
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~50-100
- Weight (lb)3.102
