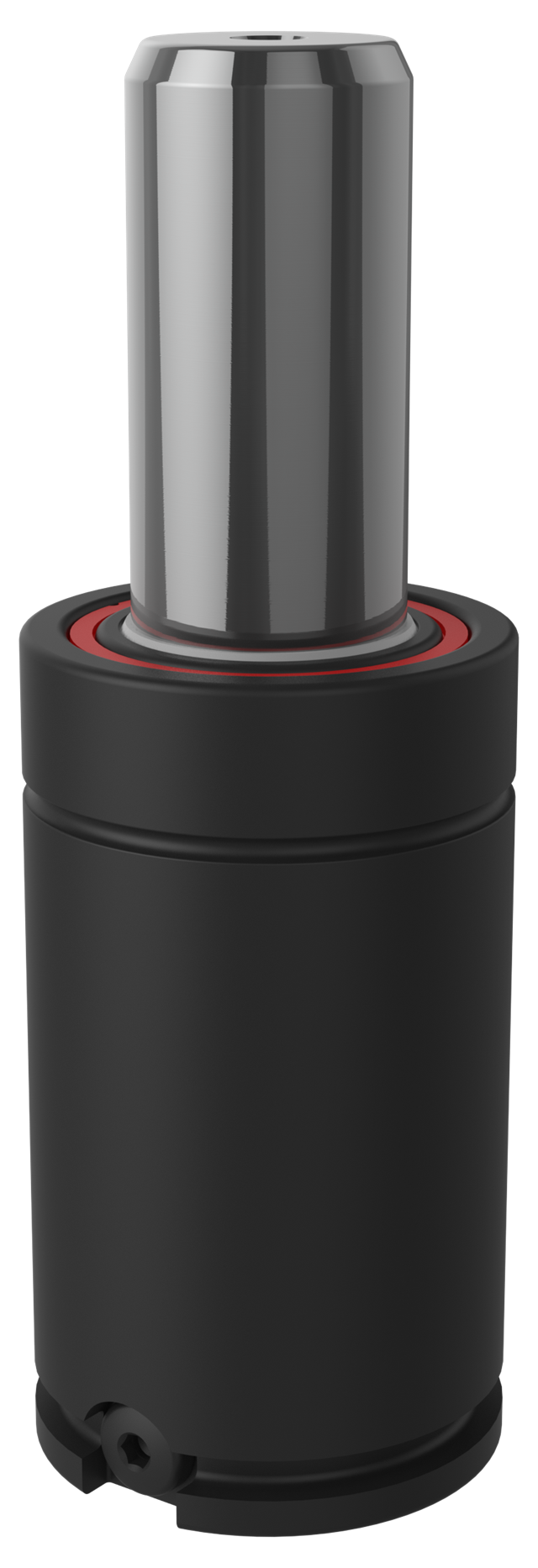

T3M-750X80
T3M-750 is available in 11 stroke lengths.
Working temperature interval, maximum strokes per mine and maximum charge pressure may vary by temperature.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 4.41 |
| S | Stroke Length (in) | 3.15 |
| Y | Total Length (in) | 7.56 |
Item specifications
- End Force At Full Stroke (LBF)2675
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.003884613
- Initial Force at max. pressure (lbf) 1665
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)196.85
- Max. Operating Temperature (F)248
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute20
- Weight (lb)1.76
