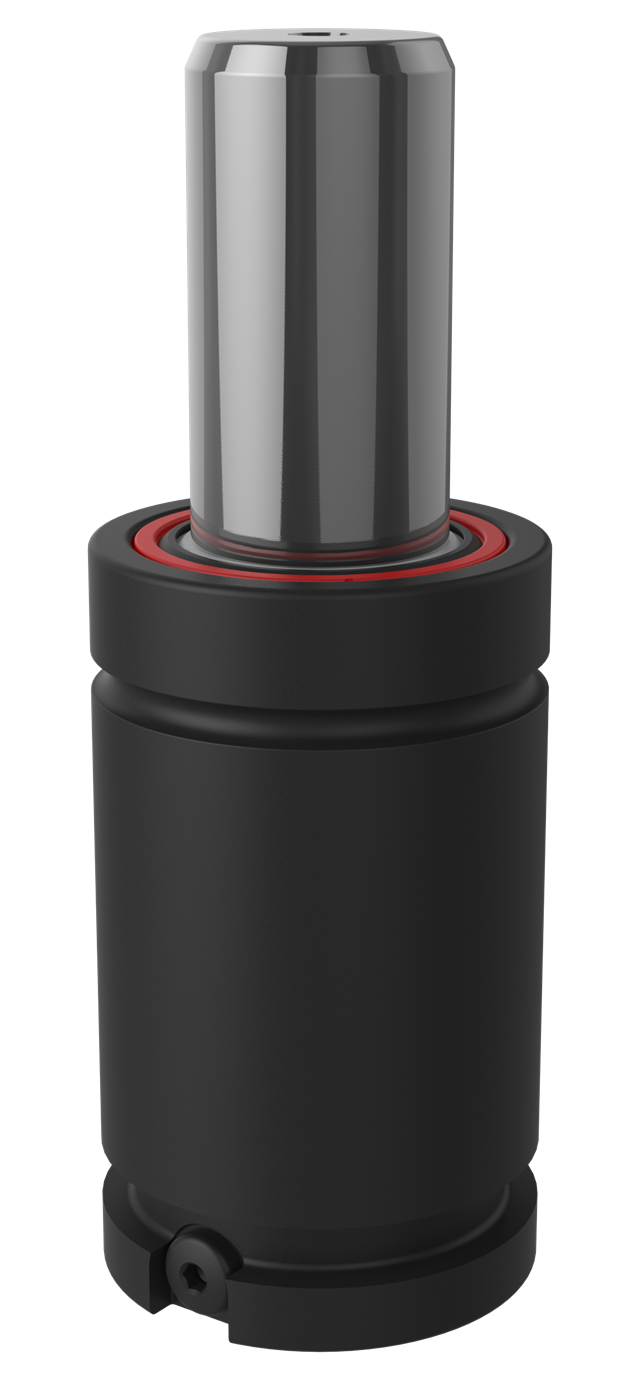

T3M-1000X16
T3M-1000 is available in 10 stroke lengths.
Working temperature interval, maximum strokes per mine and maximum charge pressure may vary by temperature.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 2.13 |
| S | Stroke Length (in) | 0.63 |
| Y | Total Length (in) | 2.76 |
Item specifications
- End Force At Full Stroke (LBF)3103
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.001412587
- Initial Force at max. pressure (lbf) 2068
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)196.85
- Max. Operating Temperature (F)248
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute20
- Weight (lb)1.188
