T3F-1500X50

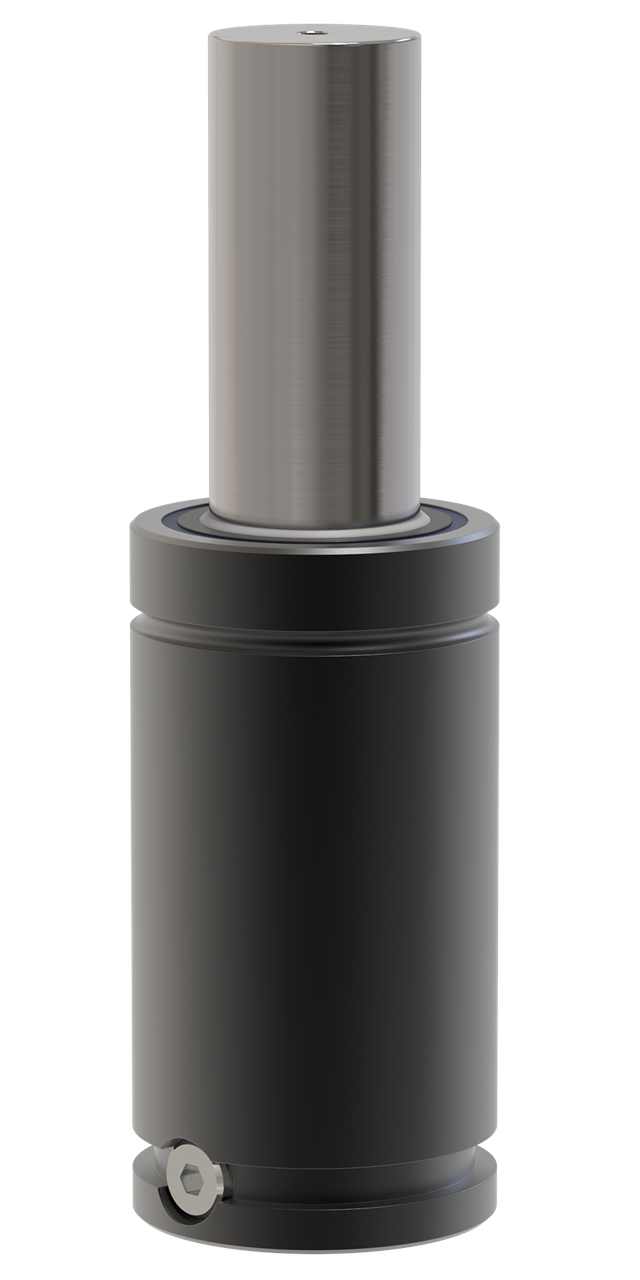

T3F-1500 provides full stroke force between 23,800 N (5,350 lbf) and 24,300 N (5,460 lbf) and is available in 12 stroke lengths.
Strokes 50, 80, 100 and 125 are offered as a part of the HYSON Preferred Program which provides optimal delivery. There is a G 1/8 side port for charging or to connect to a gas link system. The upper ISO Standard C-groove and the threaded bottom hole offer various mounting possibilities using our standard flanges.

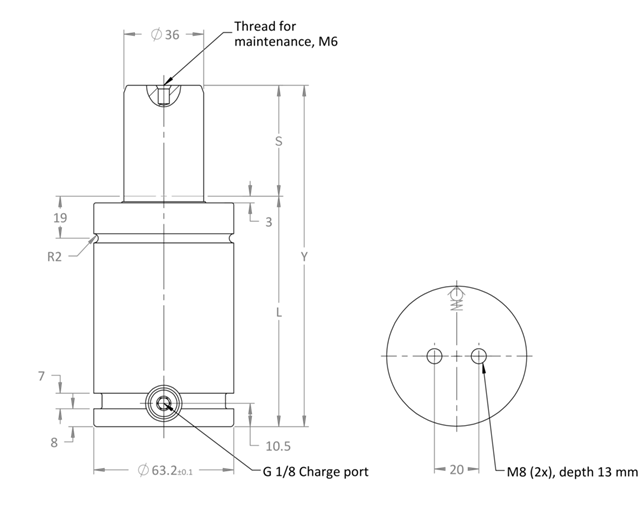

Diagram / specifications section
Preview
| L | Minimum Length (in) | 4.09 |
| S | Stroke Length (in) | 1.97 |
| Y | Total Length (in) | 6.06 |
Item specifications
- End Force At Full Stroke (LBF)5395
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.0052972
- Initial Force at max. pressure (lbf) 3375
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~50-100
- Weight (lb)3.058
