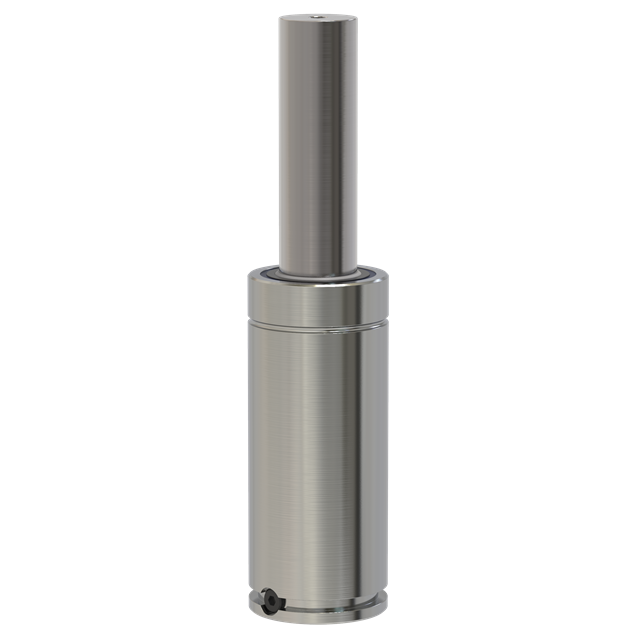

T3-750X75
T3-750 provides full stroke force between 11,700 N (2630 lbf) and 12,100 N (2720 lbf) and is available in 13 stroke lengths.
Strokes 25, 38, 50, and 63 are offered as a part of the HYSON Preferred Program which provides optimal delivery. The available flanges for T3-750 are Lower Square Flange (T2-500-FFC), Circular Flange (T2-500-FC), and Upper Square Flange (T2-500-FCS).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 4.21 |
| S | Stroke Length (in) | 2.95 |
| Y | Total Length (in) | 7.17 |
Item specifications
- End Force At Full Stroke (LBF)2675
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.003531467
- Initial Force at max. pressure (lbf) 1665
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)68
- Recommended Max Strokes Per Minute~50-100
- Weight (lb)1.694
