T3-500X10

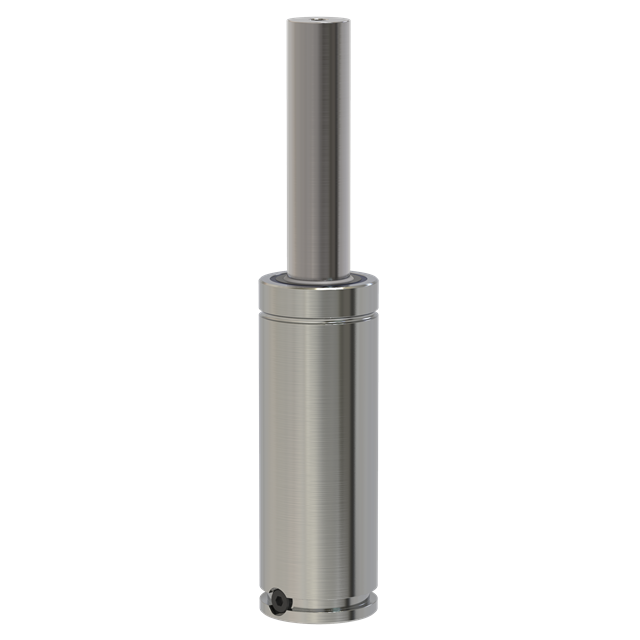

T3-500 provide full stroke force between 7,100 N (1595 lbf) and 7,400 N (1665 lbf) and is available in 13 stroke lengths.
Strokes 25, 38, 50, and 63 are offered as a part of the HYSON Preferred Program which provides optimal delivery. The available flanges for T3-500 are Lower Square Flange (T2-250-FFC), Circular Flange (T2-250-FC0), and Upper Square Flange (T2-250-FCS).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 1.57 |
| S | Stroke Length (in) | 0.39 |
| Y | Total Length (in) | 1.97 |
Item specifications
- End Force At Full Stroke (LBF)1620
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.000353147
- Initial Force at max. pressure (lbf) 1055
- Max Charging Pressure (Psi)2175.56606595
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362.594344325
- Min. Operating Temperature (F)68
- Recommended Max Strokes Per Minute~50-100
- Weight (lb)0.55
