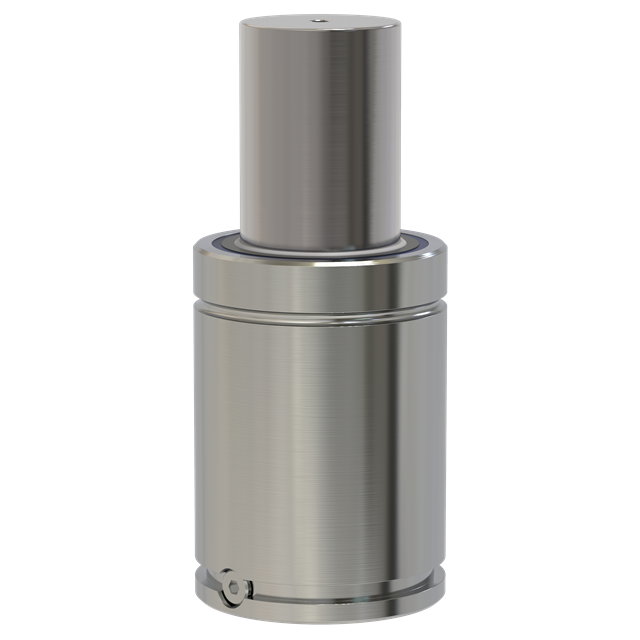

T3-4200X50
T3-4200 provides full stroke force between 60,800 N (13670 lbf) and 69,600 N (15645 lbf) and is available in 11 stroke lengths.
Strokes 50, 63, 80 and 100 are offered as a part of the HYSON Preferred Program which provides optimal delivery. The available flanges for T3-6600 are Lower Square Flange (T2-3000-FFC), Circular Flange (T2-3000-FC), Upper Square Flange (T2-3000-FCS), Bottom Mounting Plate (T2-3000-MP), and Support Mount (S-3000).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 4.25 |
| S | Stroke Length (in) | 1.97 |
| Y | Total Length (in) | 6.22 |
Item specifications
- End Force At Full Stroke (LBF)15060
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.014125867
- Initial Force at max. pressure (lbf) 9440
- Max Charging Pressure (Psi)2175.56606595
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362.594344325
- Min. Operating Temperature (F)68
- Recommended Max Strokes Per Minute~30-100
- Weight (lb)7.854
