T3-320X50

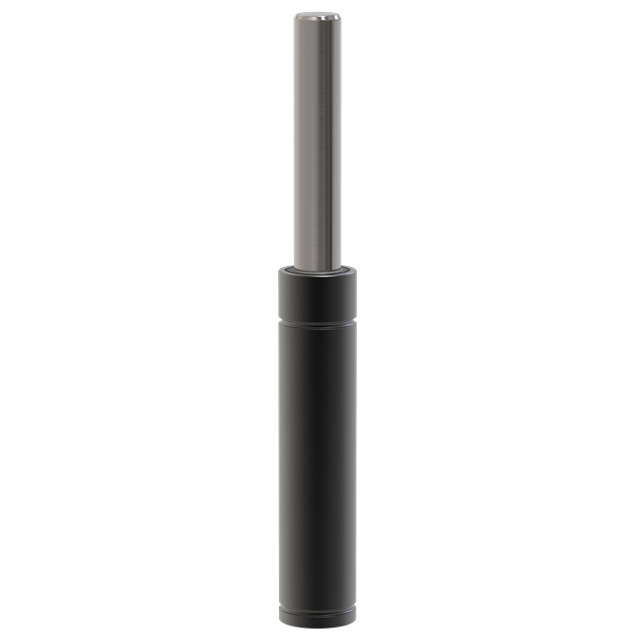

T3-320 provide full stroke force between 4,800 N (1080 lbf) and 5300 N (1190 lbf) and is available in 12 stroke lengths.
The T3 320 has a bottom port for gas charging that can also be used to connect to a gas link system. Do not use bottom thread for mounting for strokes 38, 50, 63, 75, 80, 100, and 125. Available flanges are TW-180-FCR (for use on upper grove only), T2-180-SM, and T2-180-FC.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 3.15 |
| S | Stroke Length (in) | 1.97 |
| Y | Total Length (in) | 5.12 |
Item specifications
- End Force At Full Stroke (LBF)1190
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.000776923
- Initial Force at max. pressure (lbf) 720
- Max Charging Pressure (Psi)2610.67927914
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362.594344325
- Min. Operating Temperature (F)68
- Recommended Max Strokes Per Minute~40-100
- Weight (lb)0.418
