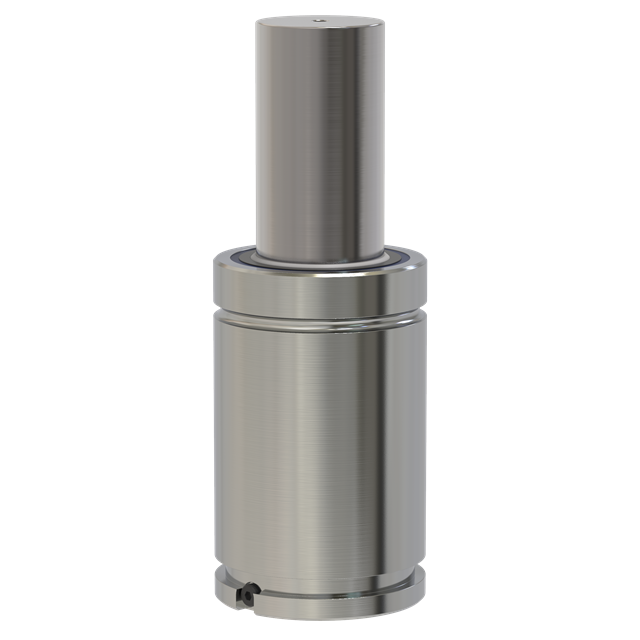

T3-2400X38
T3-2400 provides full stroke force between 38,300 N (8610 lbf) and 39,300 N (8835 lbf) and is available in 11 stroke lengths.
Strokes 25, 38, 50, and 63 are offered as a part of the HYSON Preferred Program which provides optimal delivery. The available flanges for T3-2400 are Lower Square Flange (T2-1500-FFC), Circular Flange (T2-1500-FC), Upper Square Flange (T2-1500-FCS), Bottom Mounting Plate (T2-1500-MP), and Support Mount (S-1500).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 3.27 |
| S | Stroke Length (in) | 1.5 |
| Y | Total Length (in) | 4.76 |
Item specifications
- End Force At Full Stroke (LBF)8633
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.00635664
- Initial Force at max. pressure (lbf) 5396
- Max Charging Pressure (Psi)2175.56606595
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362.594344325
- Min. Operating Temperature (F)68
- Recommended Max Strokes Per Minute~40-100
- Weight (lb)3.63
