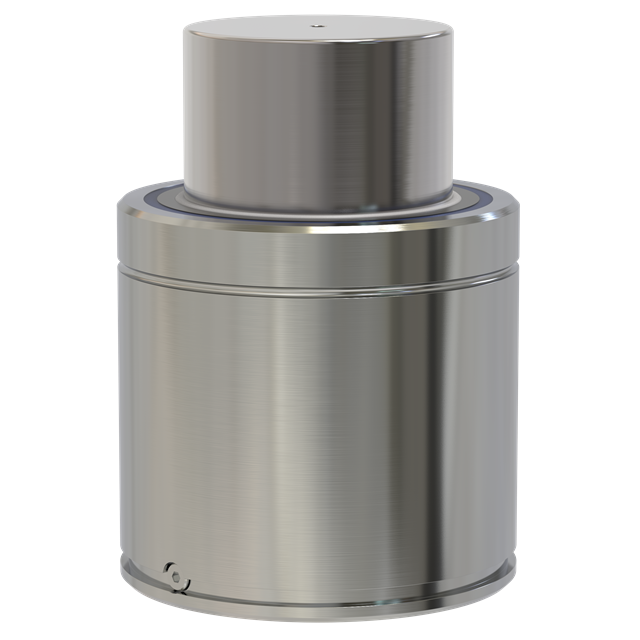

T3-20000X80
T3-20000 provides full stroke force between 259,000 N (58,200 lbf) and 330,000 N (74,250 lbf) and is available in 10 stroke lengths.
Strokes 50, 63, 80 and 100 are offered as a part of the HYSON Preferred Program which provides optimal delivery. The available flanges for Lower Square Flange (T2-10000-FFC), Upper Square Flange (T2-10000-FCS), and Bottom Mounting Plate (T2-10000-MP).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 7.48 |
| S | Stroke Length (in) | 3.15 |
| Y | Total Length (in) | 10.63 |
Item specifications
- End Force At Full Stroke (LBF)70900
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.105944
- Initial Force at max. pressure (lbf) 45000
- Max Charging Pressure (Psi)2175.56606595
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362.594344325
- Min. Operating Temperature (F)68
- Recommended Max Strokes Per Minute~15-40
- Weight (lb)61.886
