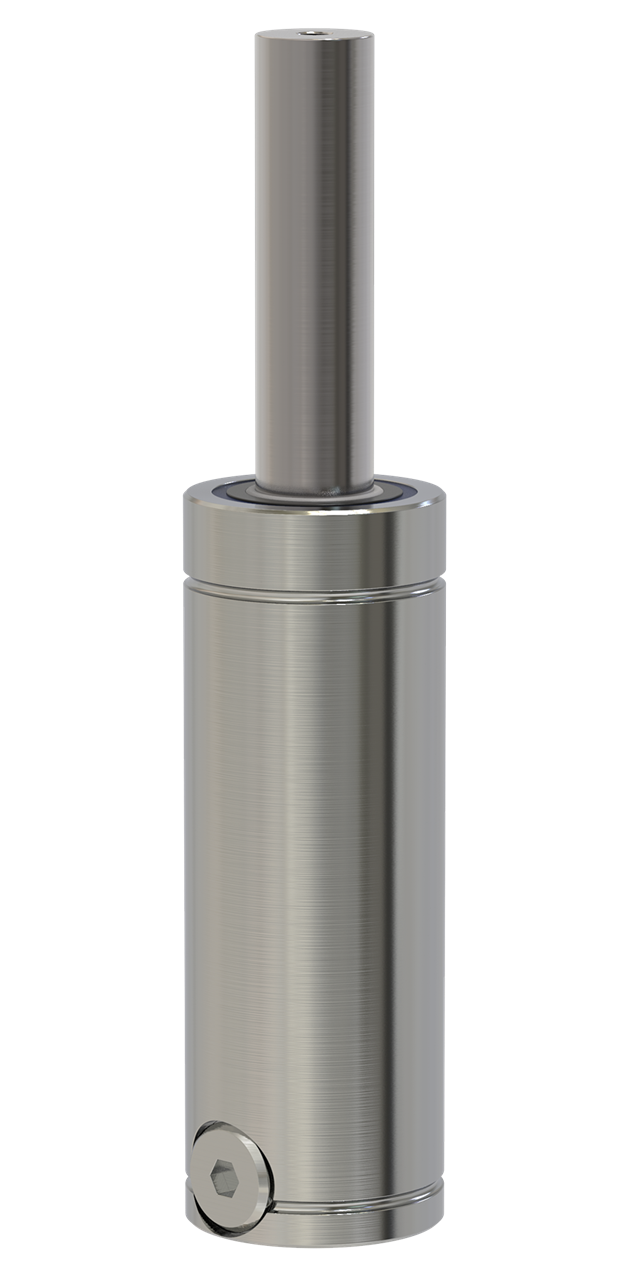

T2L-500x0.5
T2L-500 is available in 12 stroke lengths.
Flanges for T2L-500 are Circular Flange T2-500-FC, Upper Square Flange T2-500-FCS, and Lower Square Flange T2L-500-BFL.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 2.5 |
| S | Stroke Length (in) | 0.5 |
| Y | Total Length (in) | 3 |
Item specifications
- Charging Pressure (Psi)2175
- End Force At Full Stroke (LBF)1060
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.01906992
- Initial Force at max. pressure (lbf) 1055
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 40-80
- Weight (lb)1.188
