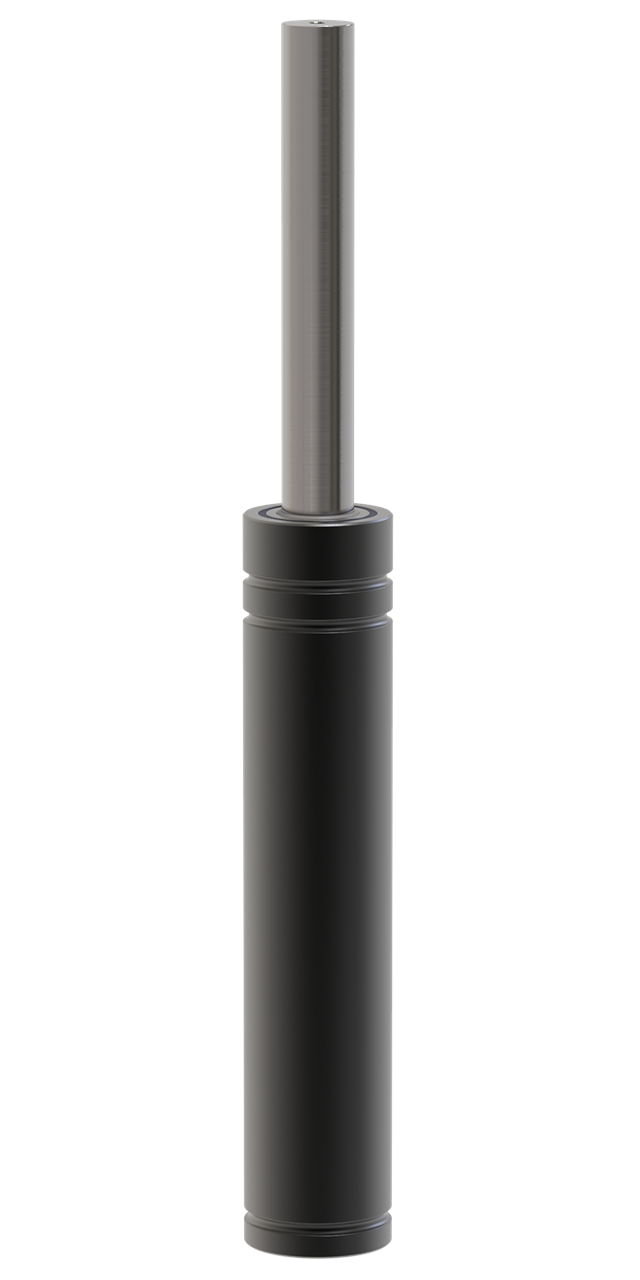

T2-180X12.7-Green
T2-180 offers multiple full stroke force options, green, blue, red, yellow and black (custom). Green provides full stroke force between 760 N (171 lbf) and 770 N (173 lbf). T2-180; Blue provides full stroke force between 1,520 (342 lbf) and 1,540 (346 lbf); Red provides full stroke force between 2,270 N (511 lbf) and 2,320 (522 lbf). Yellow provides full stroke force between 3,020 N (679 lbf) and 3,090 (695 lbf).
Available flanges for T2-180 are Top Mount VDI (FCR-25), Side Mount (SM-180), and Top Mount ISO (FCR-180). The mounting options are drop-in mount & base mount, side mount, and top & bottom mounts.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 2.15 |
| S | Stroke Length (in) | 0.5 |
| Y | Total Length (in) | 2.65 |
Item specifications
- Charging Pressure (Psi)652
- End Force At Full Stroke (LBF)173
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.000211888
- Initial Force at max. pressure (lbf) 112
- Max Charging Pressure (Psi)2610
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~80-100
- Weight (lb)0.33
