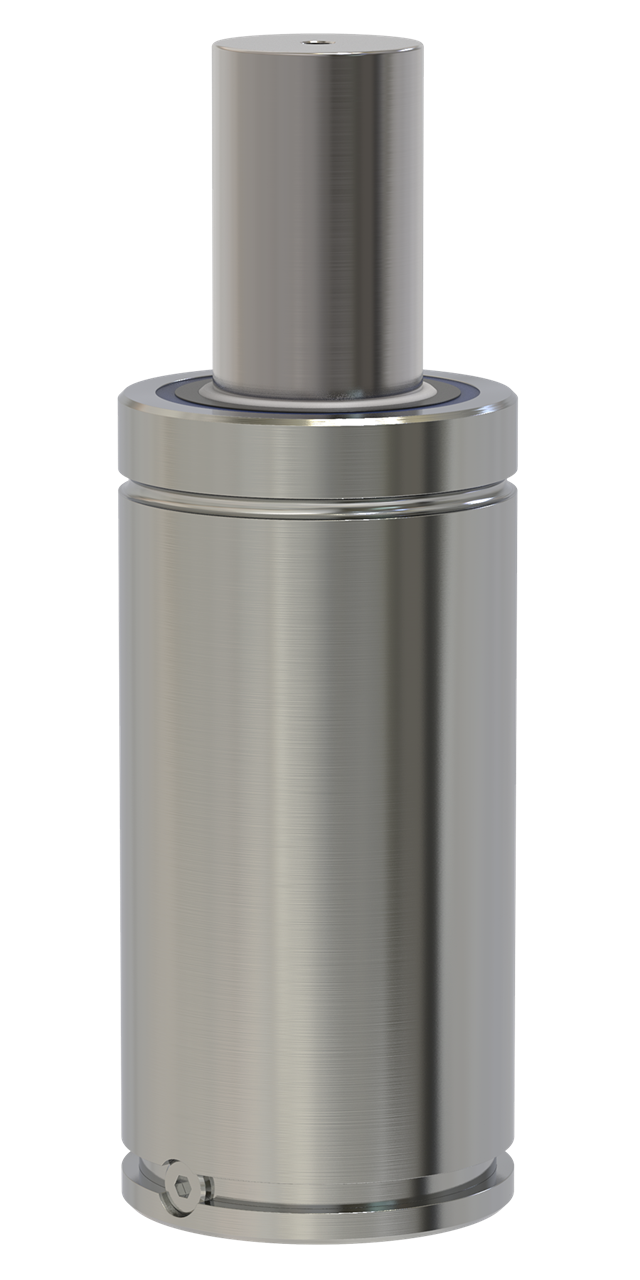

SRS-1500X250
SRS-1500 provides full stroke force of 19,000 N (4,275 lbf) and is available in 5 stroke lengths. Can be hosed toghether to equalize force.
The available flanges are Lower Square Flange (FFC-3000), Circular Flange (FC-3000), and Upper Square Flange (FCS-3000).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 14.57 |
| S | Stroke Length (in) | 9.84 |
| Y | Total Length (in) | 24.41 |
Item specifications
- End Force At Full Stroke (LBF)4275
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.048027947
- Initial Force at max. pressure (lbf) 3375
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per MinuteSee separate file in Documents -> Brochures
- Weight (lb)23.408
