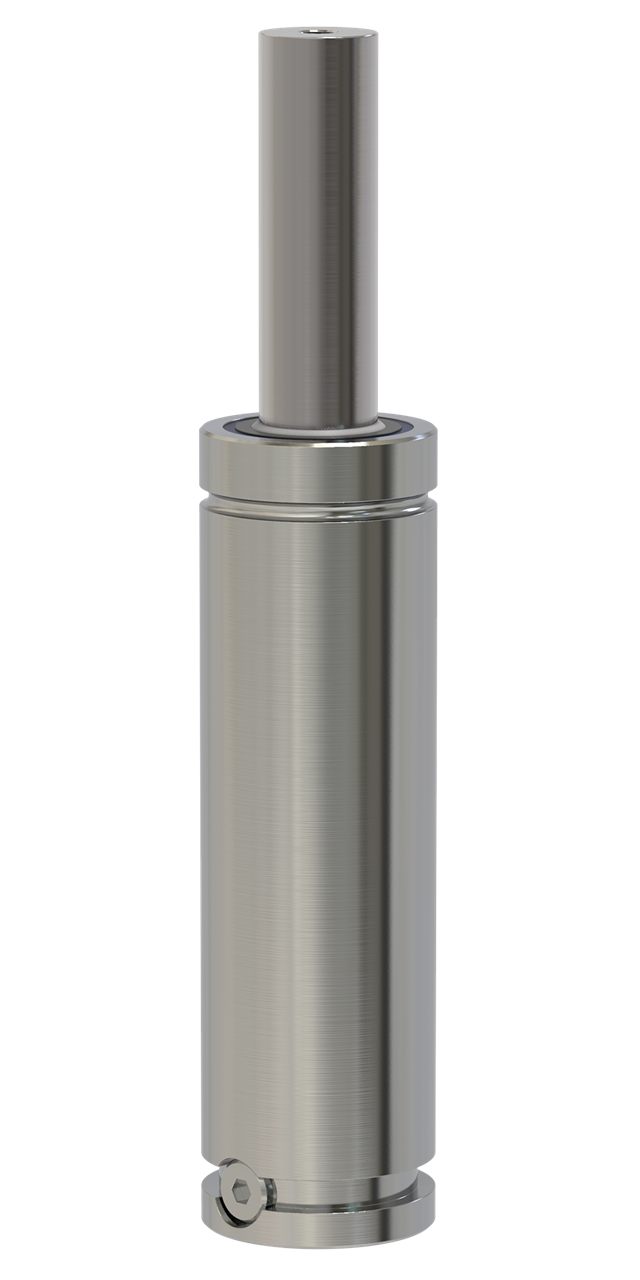

NPL-750X50
NPL-750 provides full stroke force between 11,400 N (2,560 lbf) and 12,000 (2,700 lbf) and is available in 18 stroke lengths.
Strokes 25, 50, 80, 100, and 125 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 750 model are Circular Flange FC-750, Upper Square Flange FCS-750, and Lower Square Flange FFC-750.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 4.72 |
| S | Stroke Length (in) | 1.97 |
| Y | Total Length (in) | 6.69 |
Item specifications
- End Force At Full Stroke (LBF)2670
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.002825173
- Initial Force at max. pressure (lbf) 1660
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~ 15-40
- Weight (lb)2.904
