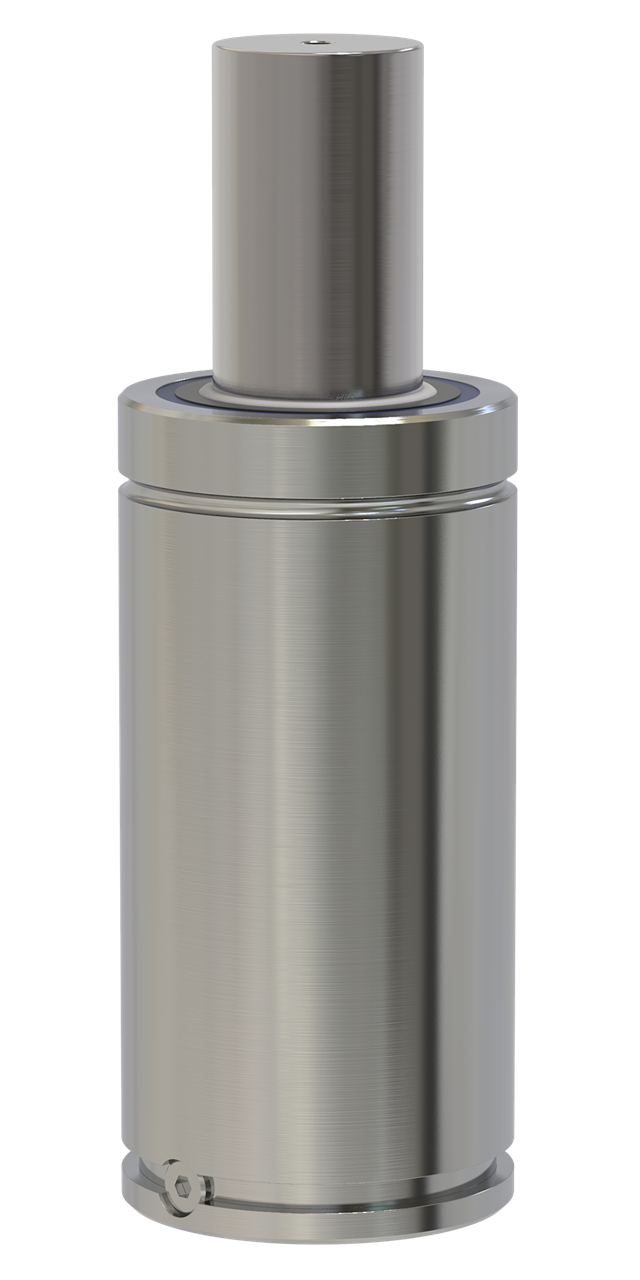

NPL-3000X12.5
NPL-3000 provides full stroke force between 38,700 N (8,710 lbf) and 47,300 (10,640 lbf) and is available in 18 stroke lengths.
Strokes 25, 50, 80, 100, 125 and 160 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 3000 model are Circular Flange FC-3000, Upper Square Flange FCS-3000, and Lower Square Flange FFC-3000.
Diagram / specifications section
Preview
| L | Minimum Length (in) | 4.23 |
| S | Stroke Length (in) | 0.49 |
| Y | Total Length (in) | 4.72 |
Item specifications
- End Force At Full Stroke (LBF)8710
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.004944053
- Initial Force at max. pressure (lbf) 6750
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~15-40
- Weight (lb)10.648
