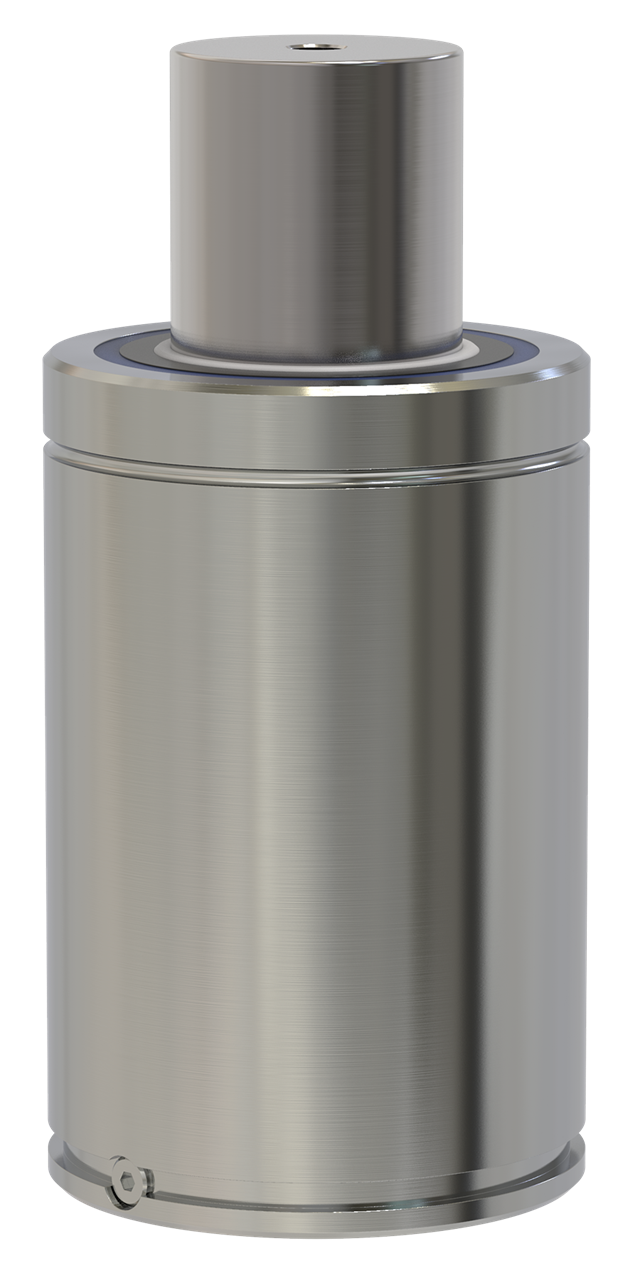

NP-5000X100
NP-5000 provides full stroke force between 71,000 N (15,960 lbf) and 84,000 N (18,880 lbf) and is available in 11 stroke lengths.
Strokes 25, 50, 80, 100, 125 and 160 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 5000 model are Bottom Mounting Plate (MP-5000), Circular Flange (FC-5000), Upper Square Flange (FCS-5000), Lower Square Flange (FFC-5000), Support Mount (S-5000), and Round Mount (RM-5000).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 9.45 |
| S | Stroke Length (in) | 3.94 |
| Y | Total Length (in) | 13.39 |
Item specifications
- End Force At Full Stroke (LBF)18430
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.031430053
- Initial Force at max. pressure (lbf) 11240
- Max Charging Pressure (Psi)2175.56606595
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362.594344325
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~15-40
- Weight (lb)36.08
