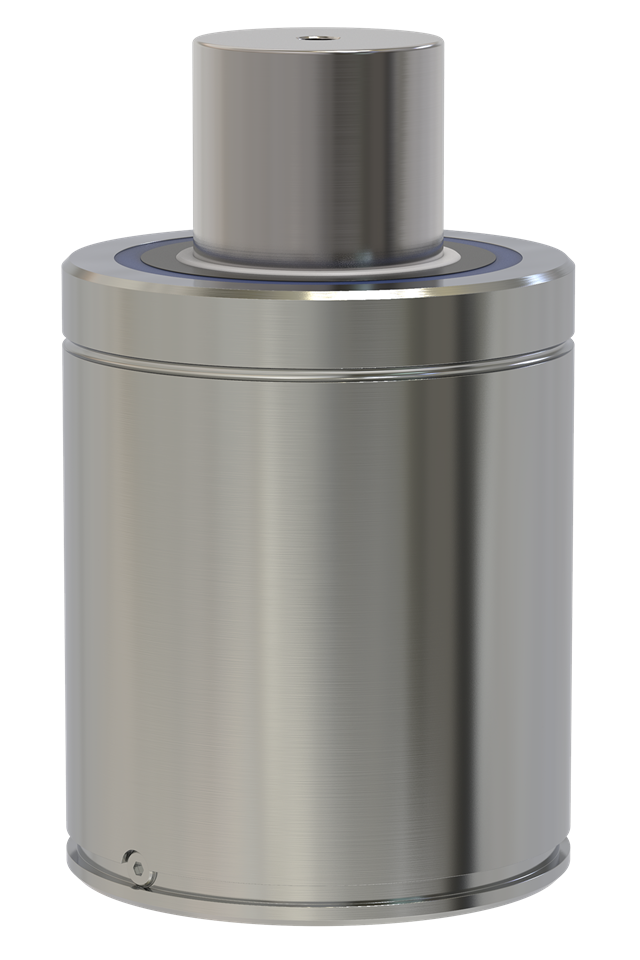

NP-10000X25
NP-10000 provides full stroke force between 138,000 N (31,020 lbf) and 160,000 N (35,970 lbf) and is available in 11 stroke lengths.
Strokes 50, 80, 100, 125, 160, 200, and 250 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 10000 model are Mounting Plate (MP-10000), Upper Square Flange (FCS-10000), and Lower Square Flange (FFC-10000).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 7.28 |
| S | Stroke Length (in) | 0.98 |
| Y | Total Length (in) | 8.27 |
Item specifications
- End Force At Full Stroke (LBF)31020
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.03072376
- Initial Force at max. pressure (lbf) 23830
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~15-40
- Weight (lb)78.98
