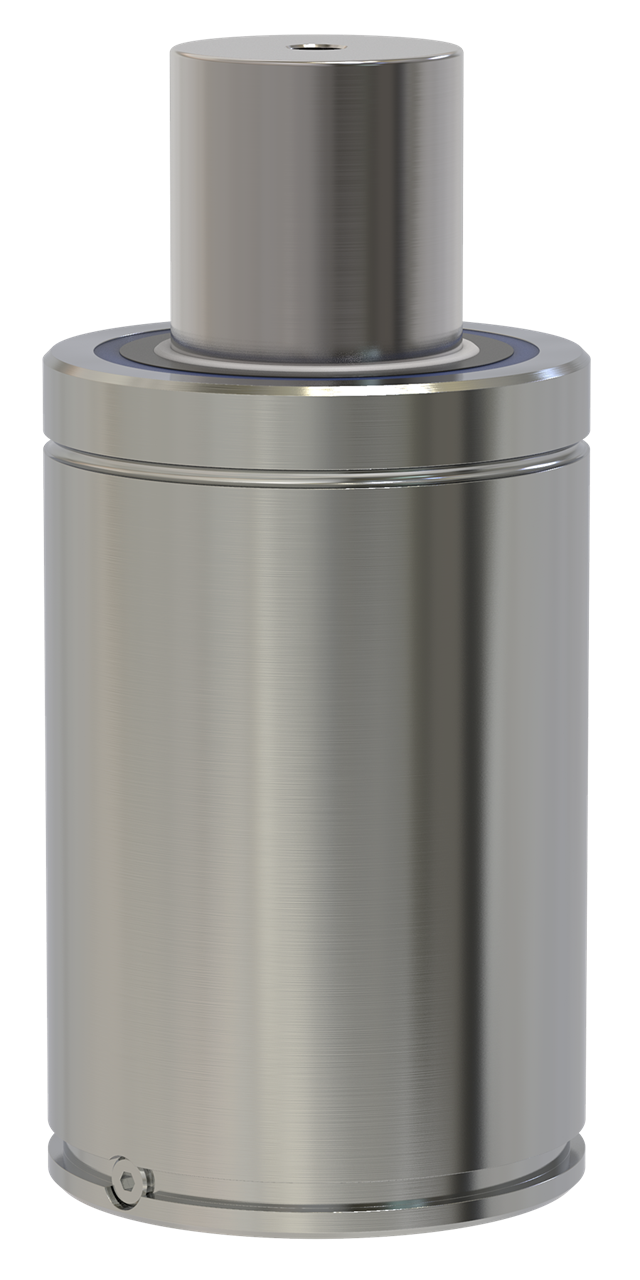

NDS-7500X250
NDS-7500 provides full stroke force between 117,000 N (26,300 lbf) and 124,000 N (27,880 lbf) and are availabe in 7 stroke lengths
Available flanges for the 7500 model are Bottom Mounting Plate (MP-7500), Circular Flange (FC-7500), Upper Square Flange (FCS-7500), Lower Square Flange (FFC-7500), Support Mount (S-5000), and Round Mount (RM-7500).
Diagram / specifications section
Preview
| L | Minimum Length (in) | 15.94 |
| S | Stroke Length (in) | 9.84 |
| Y | Total Length (in) | 25.79 |
Item specifications
- End Force At Full Stroke (LBF)27900
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.1024
- Initial Force at max. pressure (lbf) 16860
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~20-50
- Weight (lb)80.828
