SPRM-150
Side Port Rear Mount

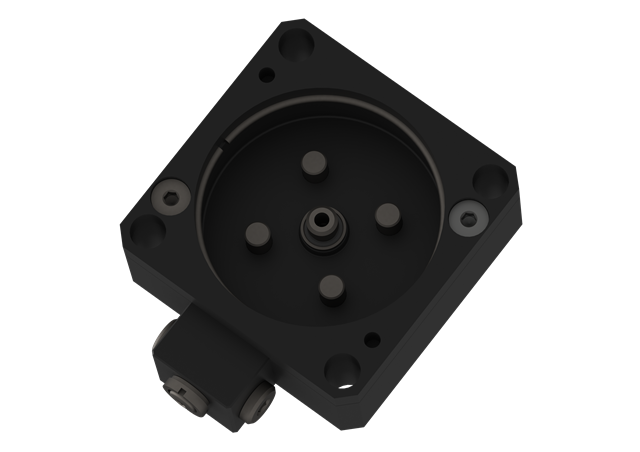

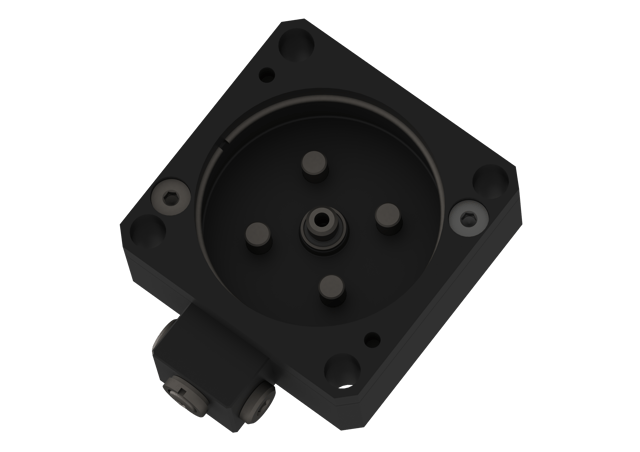

SPRM is a Side Port Rear Mount for the T4SC spring (T4SC 4700 - 18300) used for connecting into a hosed or linked system. The SPRM mount meets the Ford W-DX35-62 global standard.

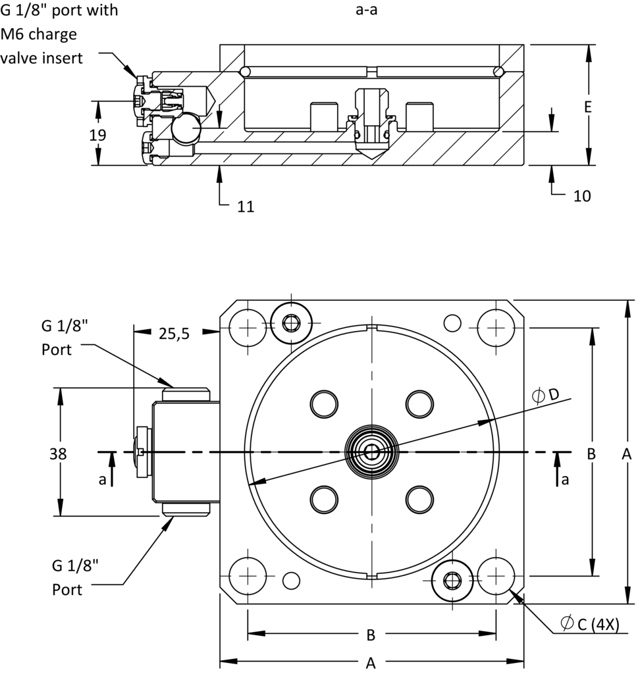

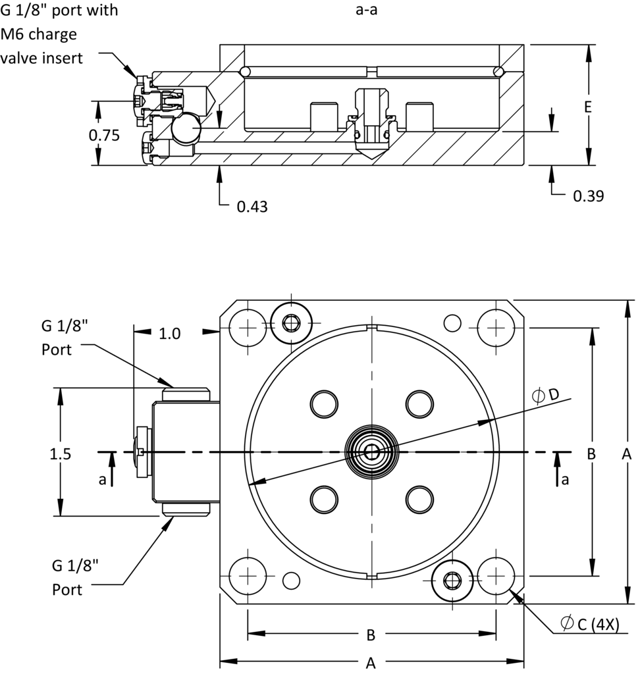

Diagram / specifications section
Preview
Preview
| A | A (in) | 6.378 |
| B | B (in) | 5.433 |
| C | C (in) | 0,689 |
| D | D (in) | 0,233 |
| E | E (in) | 1.89 |
