SFX-1500

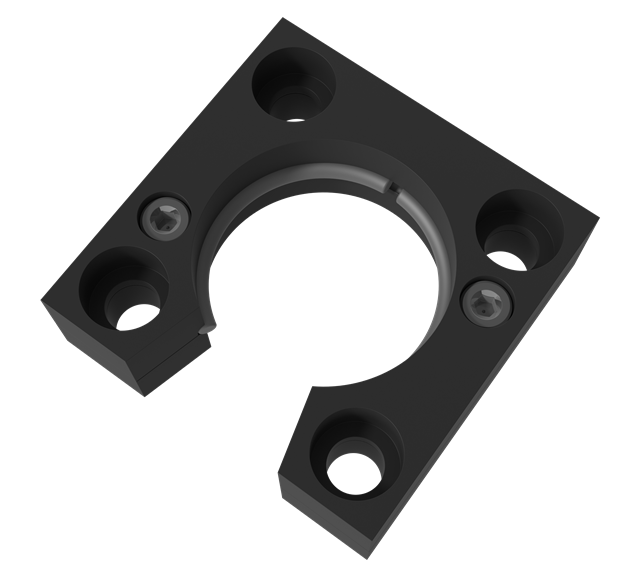

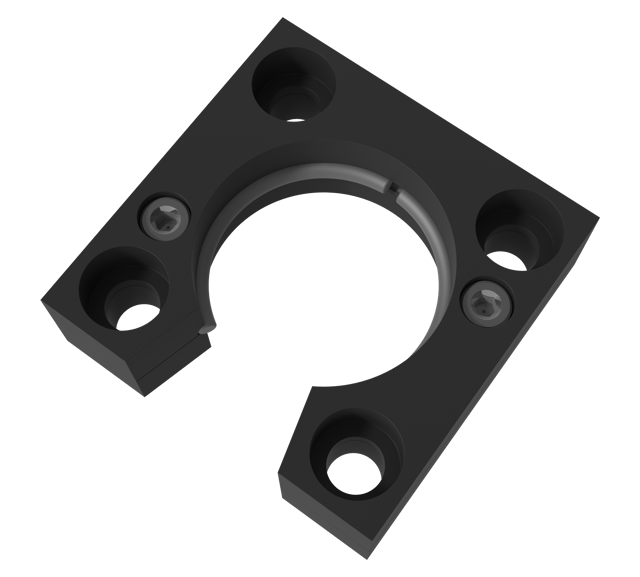

Lower Square Flange
- The SF flange type originally was developed to fit gas springs with a lower C-groove and consists of two halves with a lock ring between.
- The SF flange can be used for both upright and upside-down installations.
- The SF flange can also be used on gas springs with a lower U-groove by using the additional SF adapter ring.
- The SF adapter ring is ordered separately and is to replace the standard lock ring included in the SF flange.

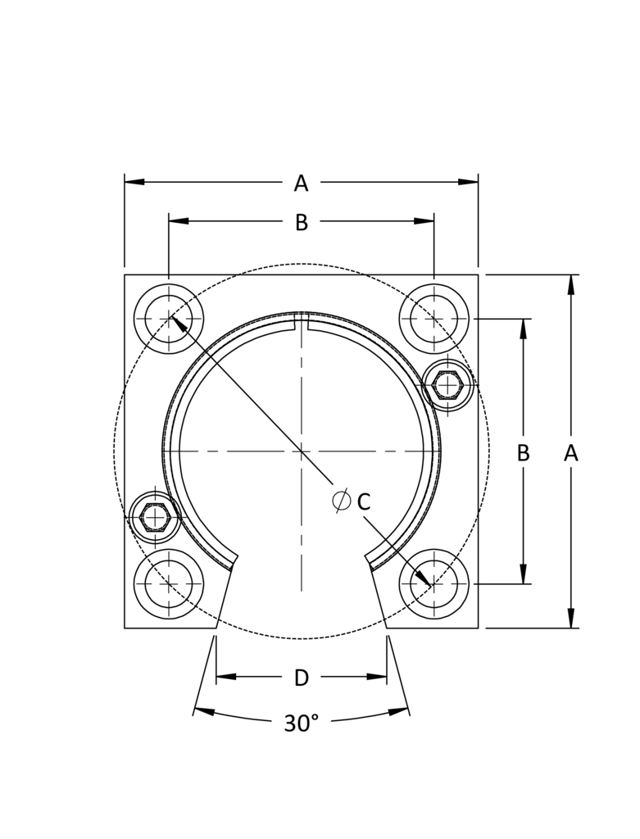

Diagram / specifications section
Preview
Preview
| A | A (in) | 3.937 |
| B | B (in) | 2.894 |
| C | C (in) | 4.091 |
| D | D (in) | 1.929 |
| F | F (in) | 0.945 |
| G | G (in) | 0.433 |
| H | H (in) | 0.709 |
| I | I (in) | 0.433 |
