S-750
Horizontal Body Flange

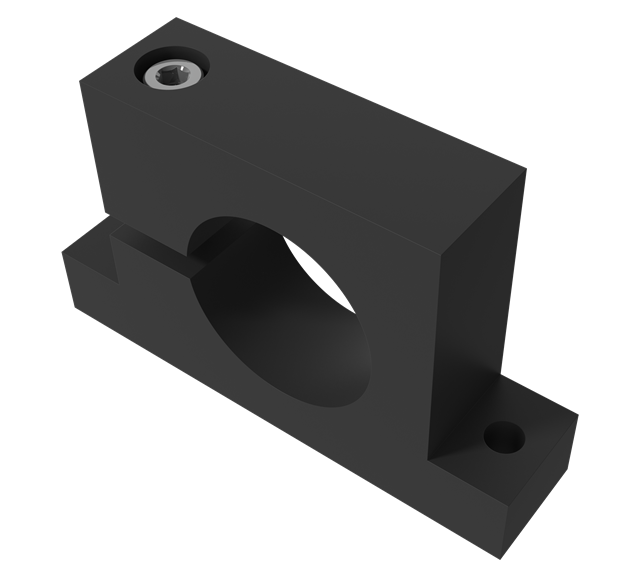

The S mount is a horizontal body mount allowing the gas spring to be installed in any orientation within the die.
Diagram / specifications section
Preview
| A | A (in) | 1,984 |
| B | B (in) | 0.787 |
| C | C (in) | 1.575 |
| D | D (in) | 1.575 |
| E | E (in) | 5.118 |
| F | F (in) | 4.331 |
| G | G (in) | 0.394 |
| H | H (in) | 0.354 |
| I | I (in) | 1.181 |
| J | J (in) | 0.787 |
