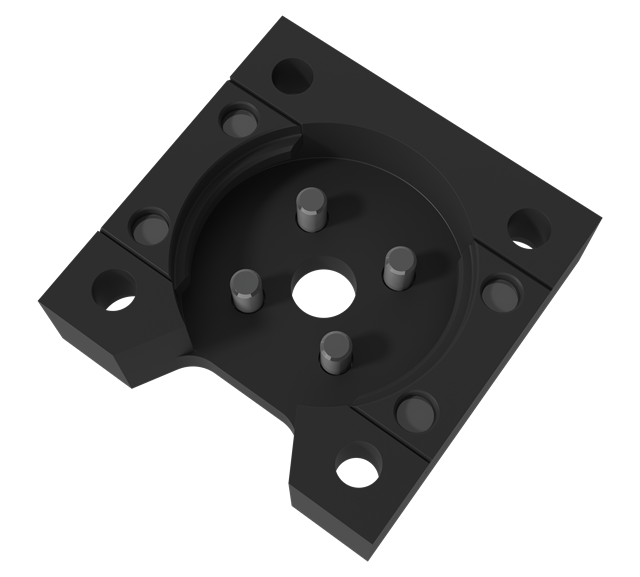

RM-7500
Removable Square Flange
The RM mount is a removable square mount for mounting the gas spring in the base. The RM mount is an alternative to an SW (Square Welded) mount, making it possible to keep a more flexible inventory. The RM mount meets the Ford W-DX35-80 North America standard.
Diagram / specifications section
Preview
Preview
| A | A (in) | 7.48 |
| B | B (in) | 5.433 |
| C | C (in) | 2,783 |
| D | D (in) | 1.024 |
| E | E (in) | 0.709 |
| F | F (in) | 0.669 |
| J | J (in) | 0,233 |
