MP-7500
Bottom Mounting Plate

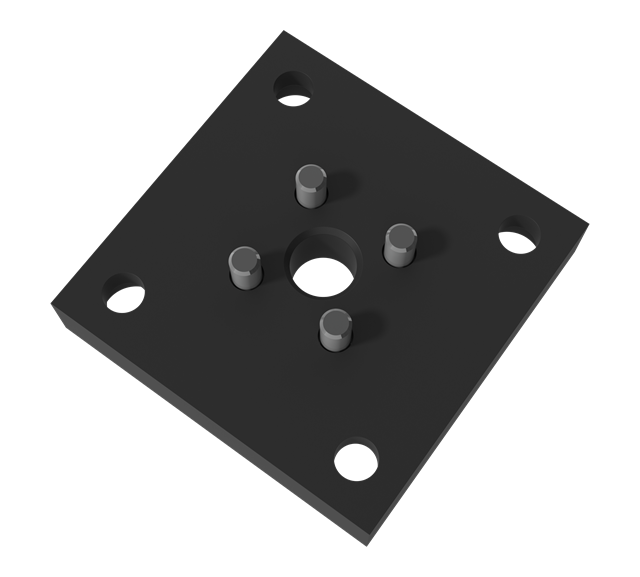

MP is a square base mount to mount the gas spring to the tool by using the bottom threads of the gas spring
into the tool. MP meets the ISO 11901-2, GM 90.25 and other standards.
Diagram / specifications section
Preview
Preview
A | A (in) | 7.48 |
B | B (in) | 5.433 |
C | C (in) | 0,689 |
D | D (in) | 1.024 |
E | E (in) | 0.669 |
F | F (in) | 3.937 |
G | G (in) | 0.433 |
H | H (in) | 0.709 |
J | J (in) | 0.787 |
K | K (in) | 0.984 |
