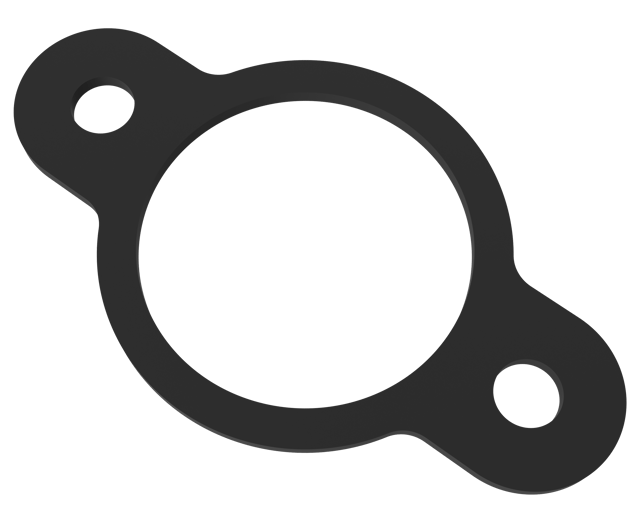

L-250-Hyson

L-250

When fixing gas springs vertically using 2 LM-lugs, locking plate L must be used at the same time to ensure that the spring is fixed radially.
When fixing gas springs vertically using 2 LM-lugs, locking plate L must be used at the same time to ensure that the spring is fixed radially.

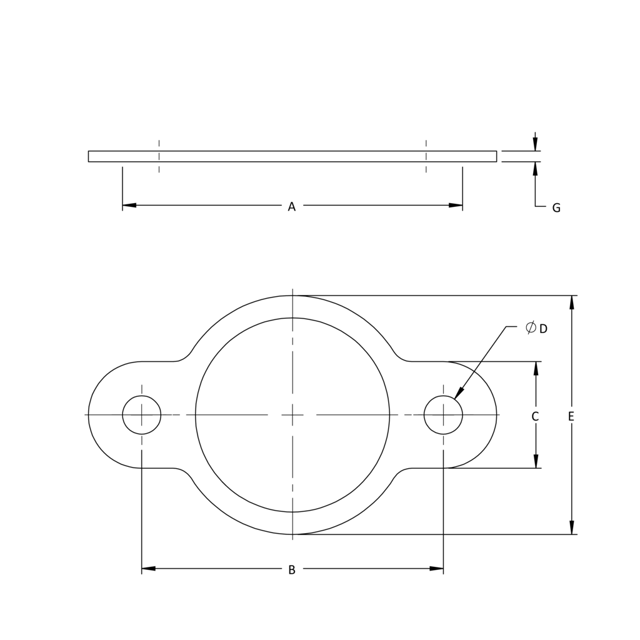

Diagram / specifications section

Preview
AA (in)3.016
BB (in)2.228
CC (in)0.787
DD (in)0.276
EE (in)1.89
FF (in)0.374
GG (in)0.098
