HM-750

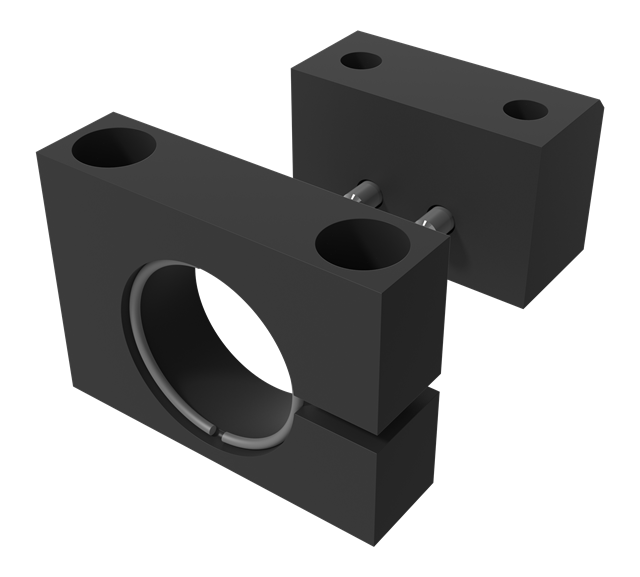

Horizonal Foot Flange specifically for NP springs.
HM (Horizontal Mount) is a mount for NP 250, 750-3000 springs. This mount meets FORD WD-X35-62-standard. The front support can be rotated 180° allowing it to be mounted in a 10 mm key groove. If the front support is not mounted in a key groove, we recommend that the rear mount is backed up using a key.
The support is supplied complete with screws for attaching the mount to the spring.
Diagram / specifications section
Preview
Preview
| A | A (in) | 3.543 |
| B | B (in) | 2.677 |
| C | C (in) | 1.693 |
| D | D (in) | 0.512 |
| E | E (in) | 1.732 |
| F | F (in) | 2.559 |
| G | G (in) | 2.756 |
| H | H (in) | 1.181 |
| J | J (in) | 0.984 |
| K | K (in) | 0.709 |
| L | L (in) | 0.433 |
| M | M (in) | 0.433 |
| P | P (in) | 1.181 |
| Q | Q (in) | 0.591 |
| R | R (in) | 1.772 |
