HM-250
Horizonal Foot Flange specifically for NP springs.

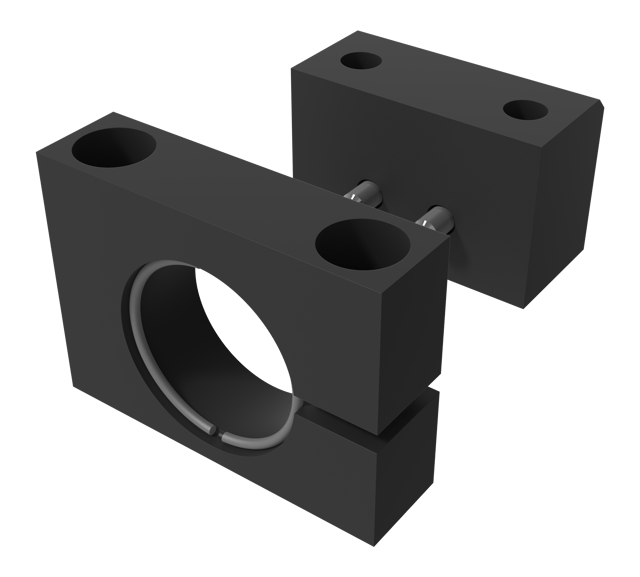

HM (Horizontal Mount) is a mount for NP 250, 750-3000 springs. This mount meets FORD WD-X35-62-standard. The front support can be rotated 180° allowing it to be mounted in a 10 mm key groove. If the front support is not mounted in a key groove, we recommend that the rear mount is backed up using a key.
The support is supplied complete with screws for attaching the mount to the spring.

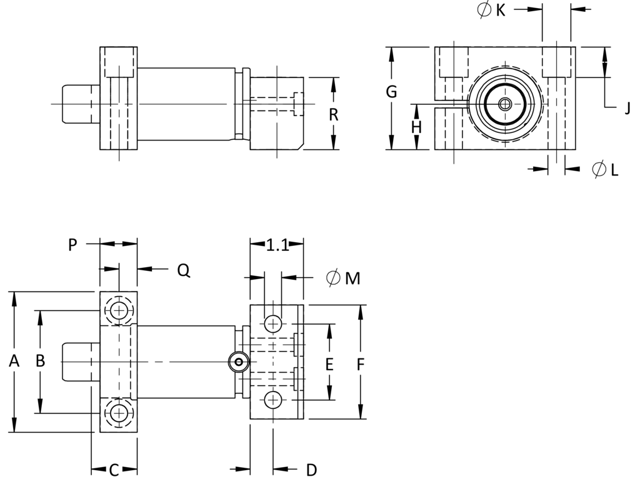

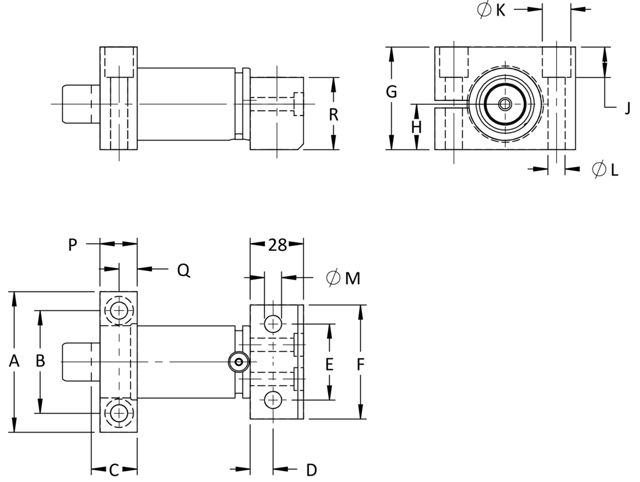

Diagram / specifications section
Preview
Preview
| A | A (in) | 2.913 |
| B | B (in) | 2.126 |
| C | C (in) | 1.161 |
| D | D (in) | 0.472 |
| E | E (in) | 1.575 |
| F | F (in) | 2.362 |
| G | G (in) | 2.126 |
| H | H (in) | 0.941 |
| J | J (in) | 0.63 |
| K | K (in) | 0.591 |
| L | L (in) | 0.354 |
| M | M (in) | 0.354 |
| P | P (in) | 0.787 |
| Q | Q (in) | 0.394 |
| R | R (in) | 1.496 |
