FCSX-1500
Upper Square Flange

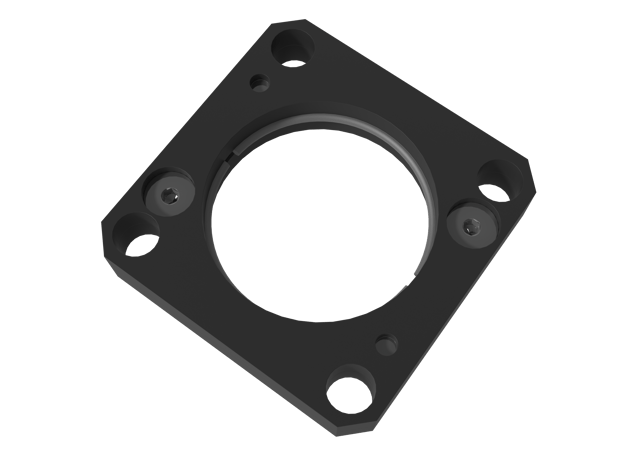

FCS is a square flange mount used to mount the gas spring in the upper C-groove.
FCS meets the ISO 11901-2, VDI 3003, Ford WDX35-62, GM 90.25 and other standards.
FCS meets the ISO 11901-2, VDI 3003, Ford WDX35-62, GM 90.25 and other standards.

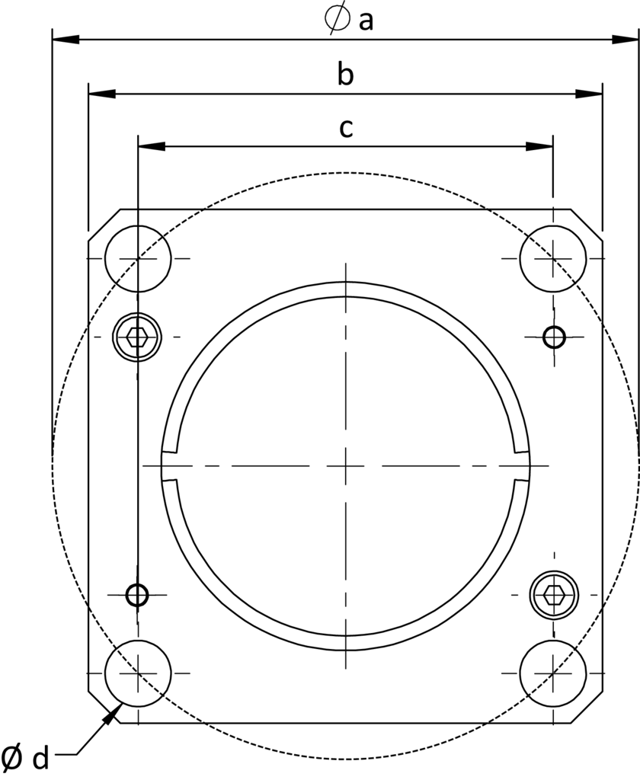

Diagram / specifications section
Preview
Preview
Preview
| A | A (in) | 3.563 |
| B | B (in) | 3.15 |
| C | C (in) | 2.52 |
| D | D (in) | 0.433 |
| E | E (in) | 0.63 |
| F | F (in) | 1.063 |
