Toolmind™ Base Station

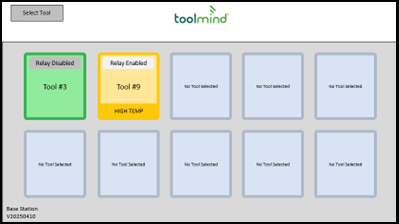

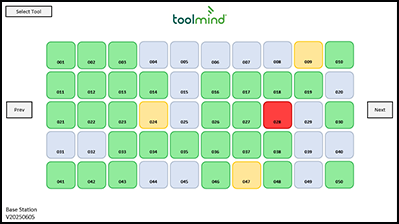

Monitor the pressure and temperature of your system through the 10-inch display at the localized Base Station. Conveniently monitor up to 250 tools, with up to 12 Sensors per tool, in a single location.

All monitored parameters have user-adjustable limits (high and low) to ensure your operation performs precisely to specification. The Base Station also features an industry-standard RS232 port, so users can integrate directly into their PLC, using the built-in relay to automatically shut down operations if the process strays outside the set limits. As an added benefit, the user can rename sensors for easy identification.

Wireless Features

  • Bluetooth™ 5.0 Wireless Connection
  • Encrypted Data Connection
  • Compatible with all of Hyson’s IoT Systems




Mechanical Features

  • Rugged Aluminum Enclosure
  • VESA Mounting Pattern
  • 10.1-Inch Touchscreen Display
  • M12 4-Pin Connector
  • Includes Relay Output
  • DB9 RS232 Connector for Local Data Output
  • External Antenna for Better Range
  • Access Control (Admin Features)




Software Features

  • 250-Tool Library
  • Capable of Monitoring 12 Sensors per Tool
  • Sensor and Tool Naming Functions
  • Warning and Fault Options
  • Adjustable High and Low-Pressure Limits
  • Adjustable High-Temperature Limit
  • Fault Options will Trip Relay
  • Display Units: F/PSI, C/BAR, or C/MPa
