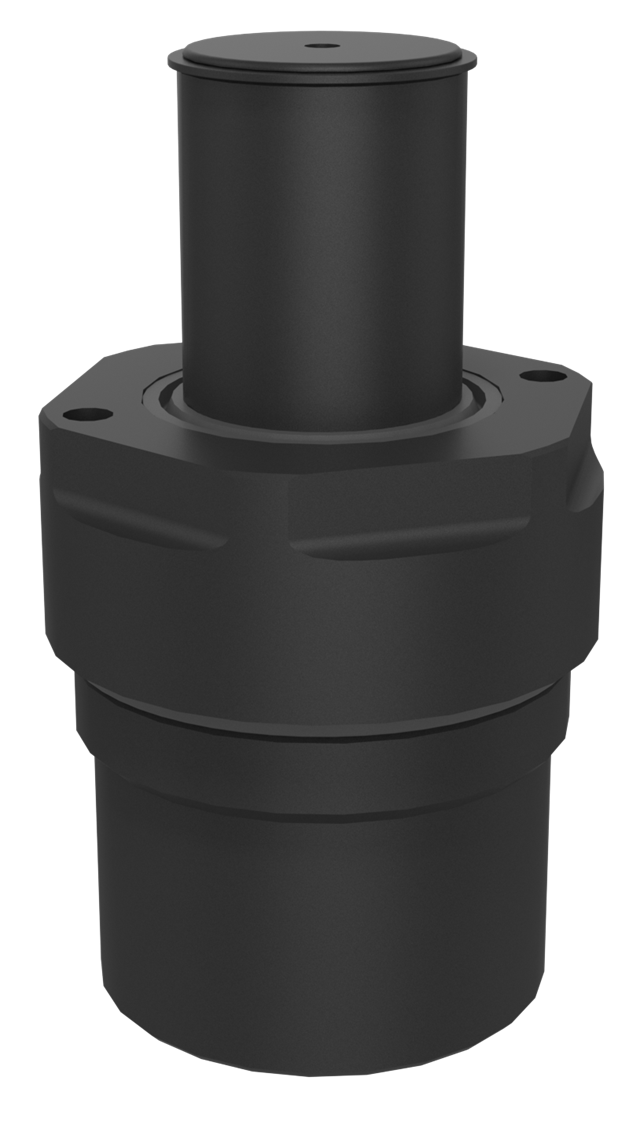

MORD 4 x 3.00
MORD 4 ton systems are available in 13 stroke lengths. Shoulder dimension is 42mm (1.66in)

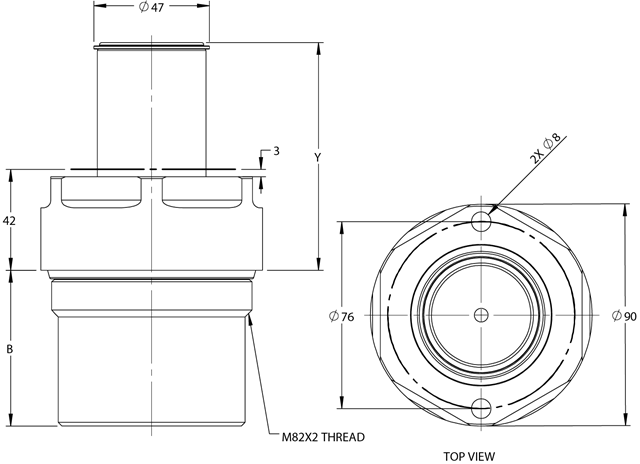

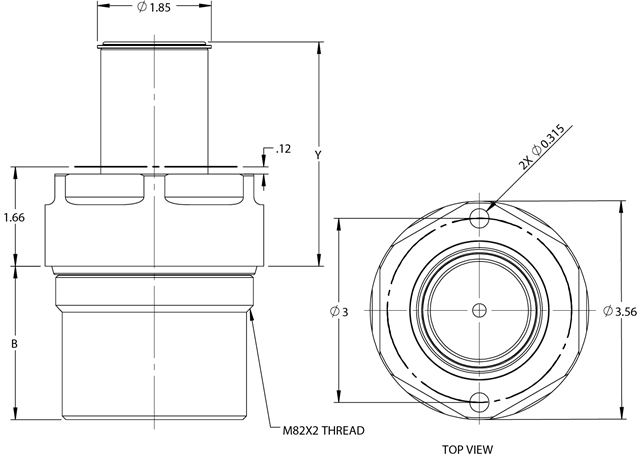

Diagram / specifications section
Preview
Preview
| Cylinder Diameter (In) | 3.54 | |
| Manifold Thread | M82 x 2 | |
| B | Skirt Dim (in) | 3.5 |
| S | Stroke Length (in) | 2.99 |
| Y | Total Length above Plate (in) | 4.65 |
Item specifications
- Initial Force at max. pressure (lbf) 7999.826240213
- Max Charging Pressure (Psi)1493
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)77
- Weight (lb)8.13
