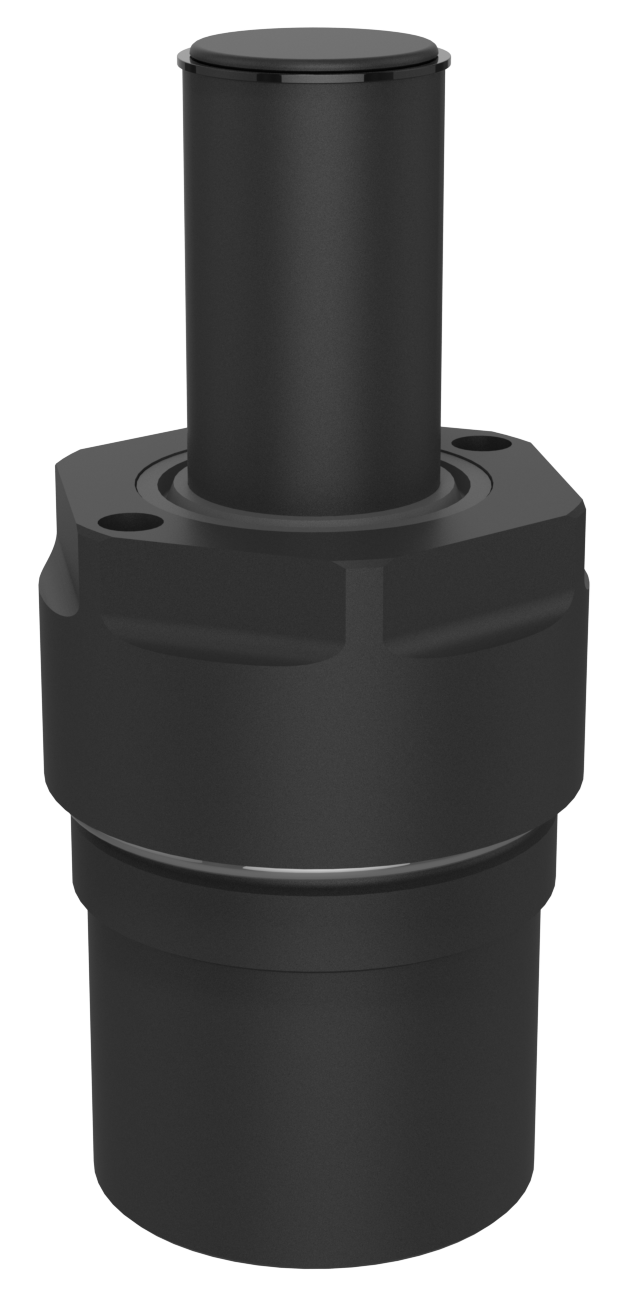

MORD 3000 x 4.50
MORD 3000 systems are available in 11 stroke lengths. Shoulder dimension is 42mm (1.66in)
Diagram / specifications section
Preview
| Cylinder Diameter (In) | 2.76 | |
| Manifold Thread | 2-1/2" x 12 | |
| B | Skirt Dim (in) | 4.76 |
| S | Stroke Length (in) | 4.49 |
| Y | Total Length above Plate (in) | 6.14 |
Item specifications
- Initial Force at max. pressure (lbf) 6900.060890568
- Max Charging Pressure (Psi)2001
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)77
- Weight (lb)4.15
