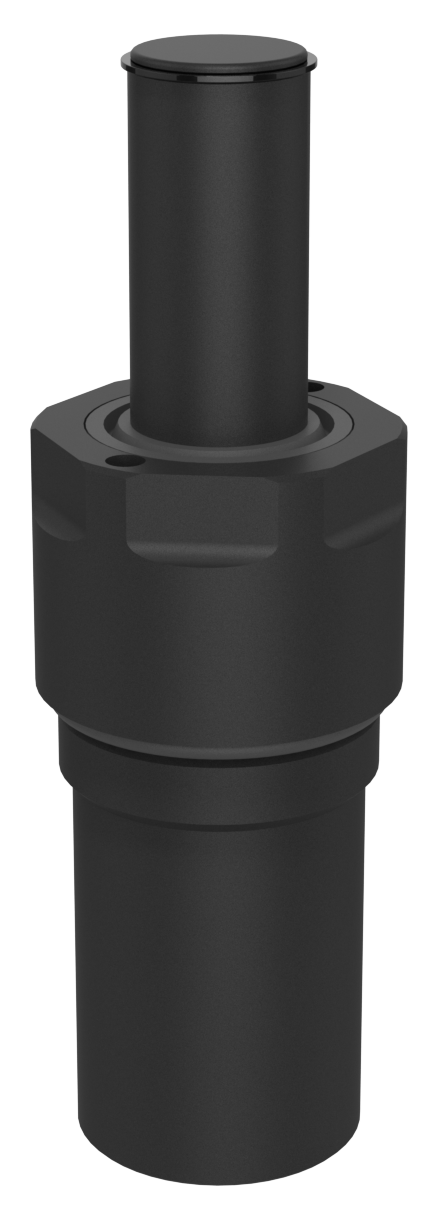

MORD 1500 x 4.00
MORD 1500 systems are avaialble in 9 stroke lengths. Shoulder dimension is 42mm (1.66in)

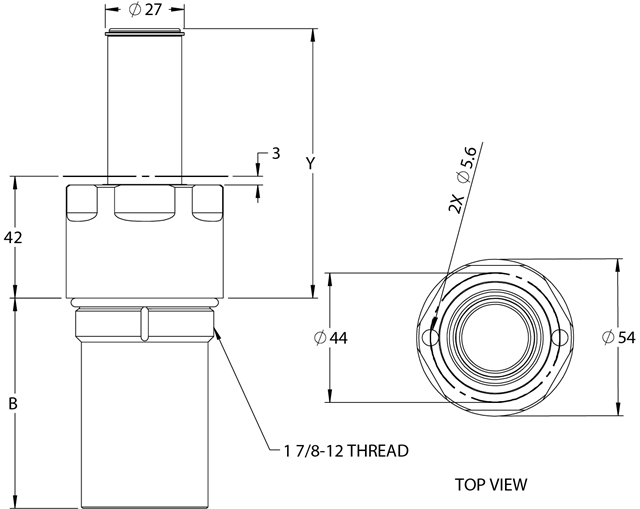

Diagram / specifications section
Preview
| Cylinder Diameter (In) | 2.13 | |
| Manifold Thread | 1-7/8" x 12 | |
| B | Skirt Dim (in) | 3.98 |
| S | Stroke Length (in) | 4 |
| Y | Total Length above Plate (in) | 5.67 |
Item specifications
- Initial Force at max. pressure (lbf) 3540.066426996
- Max Charging Pressure (Psi)2001
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)77
- Weight (lb)3.14
