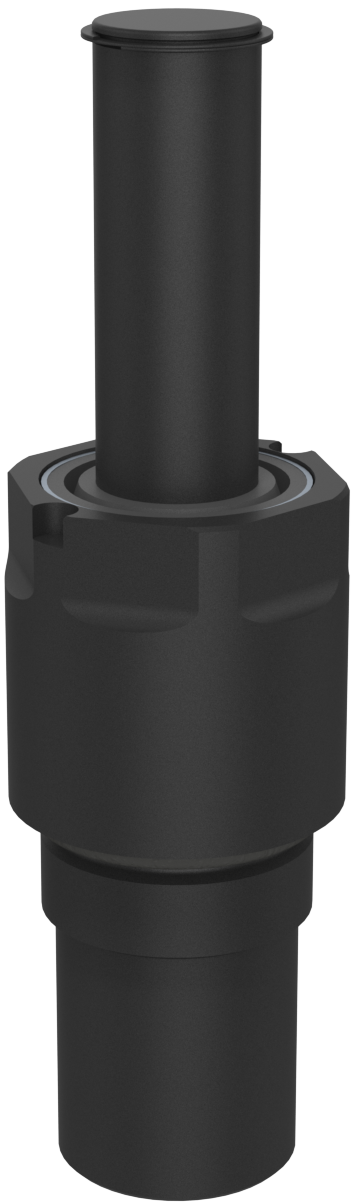

MORD .5 x 1.50
MORD 1/2 ton systems are available in 10 stroke lengths. Shoulder dimension is 42mm (1.66in)

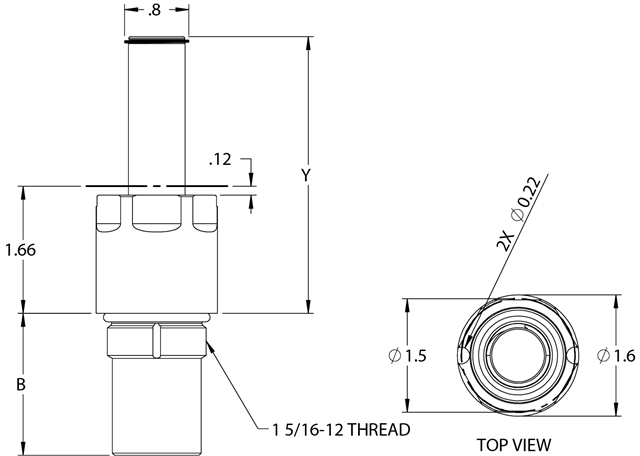

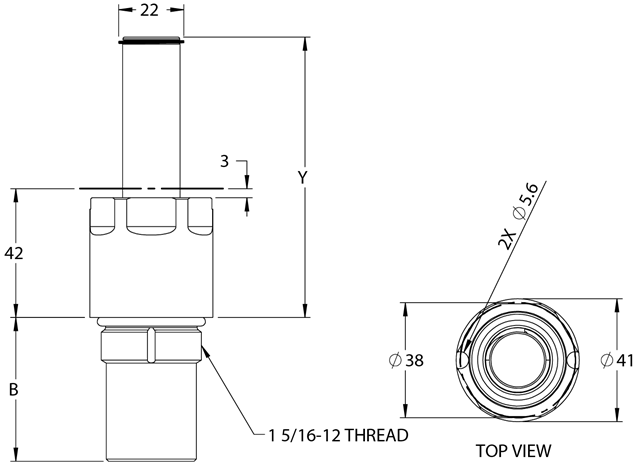

Diagram / specifications section
Preview
Preview
| Cylinder Diameter (In) | 1.61 | |
| Manifold Thread | 1-5/16" x 12 | |
| B | Skirt Dim (in) | 1.51 |
| S | Stroke Length (in) | 1.5 |
| Y | Total Length above Plate (in) | 3.15 |
Item specifications
- Initial Force at max. pressure (lbf) 999.950178909
- Max Charging Pressure (Psi)1493
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)77
- Weight (lb)1.3
