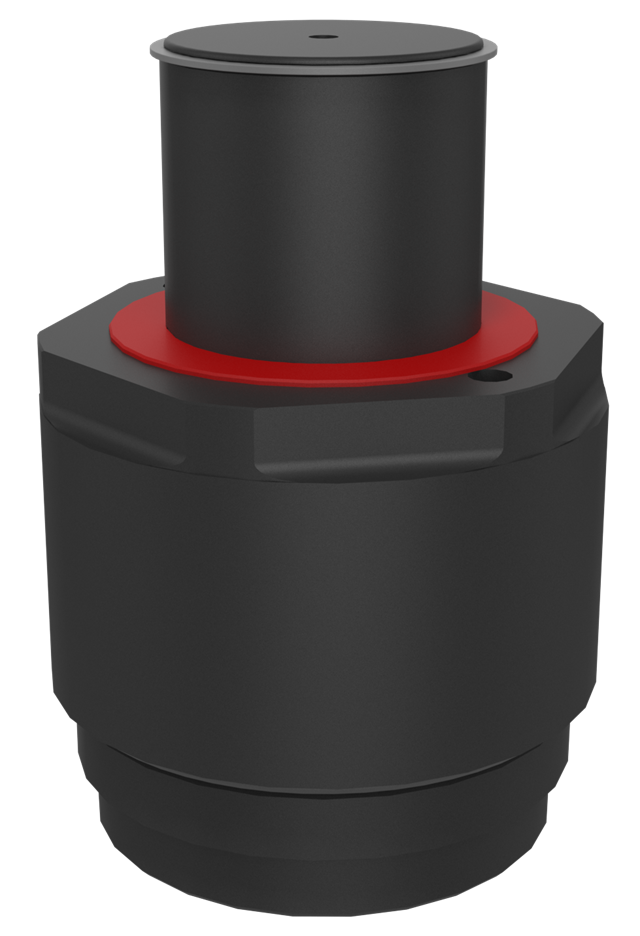

MOR 6 x 4.50
MOR 6 ton systems are available in 17 stroke lengths. Skirt dimension is 32mm (1.25in)
Diagram / specifications section
Preview
Preview
| Cylinder Diameter (In) | 4.29 | |
| Manifold Thread | M100 x 2 | |
| A | Min Length Above Plate (in) | 5.41 |
| S | Stroke Length (in) | 4.49 |
| Y | Total Length above Plate (in) | 9.92 |
Item specifications
- Initial Force at max. pressure (lbf) 11999.851764792
- Max Charging Pressure (Psi)1493
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)77
- Weight (lb)16
