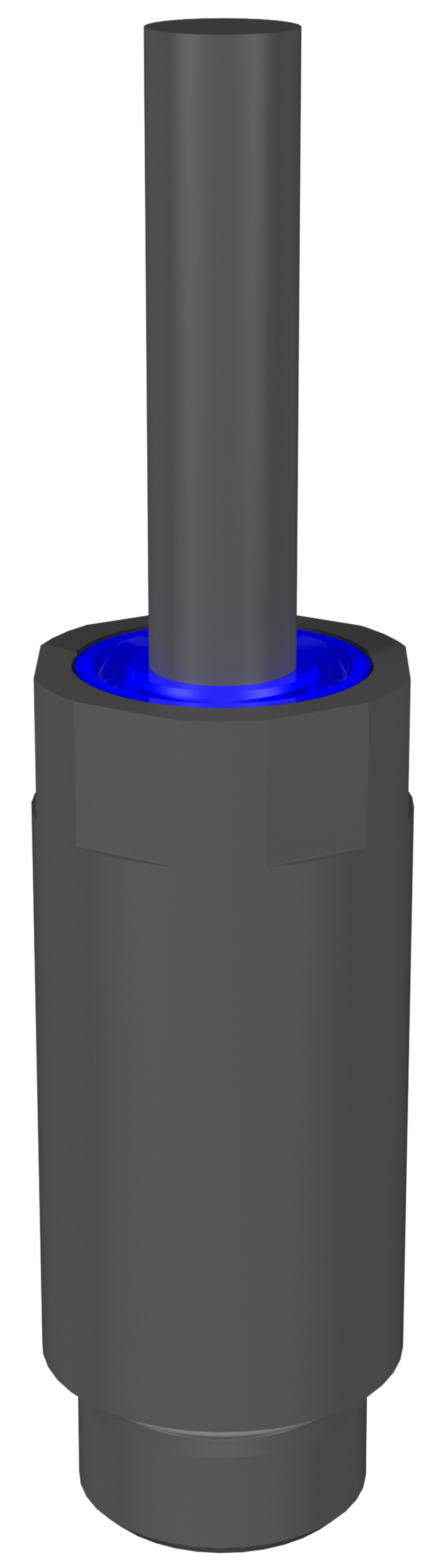

MOR 400 x 1.50
MOR 1/4 ton systems are avaialbe in 7 stroke lengths . Skirt dimension is 14mm (0.59in)
Often used as lifter or when higher speeds are required.
Diagram / specifications section
Preview
| Cylinder Diameter (In) | 1.3 | |
| Manifold Thread | 1-1/16" x 12 | |
| A | Min Length Above Plate (in) | 2.16 |
| S | Stroke Length (in) | 1.5 |
| Y | Total Length above Plate (in) | 3.66 |
Item specifications
- Initial Force at max. pressure (lbf) 609.90666263
- Max Charging Pressure (Psi)1493
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)77
- Weight (lb)9.12
