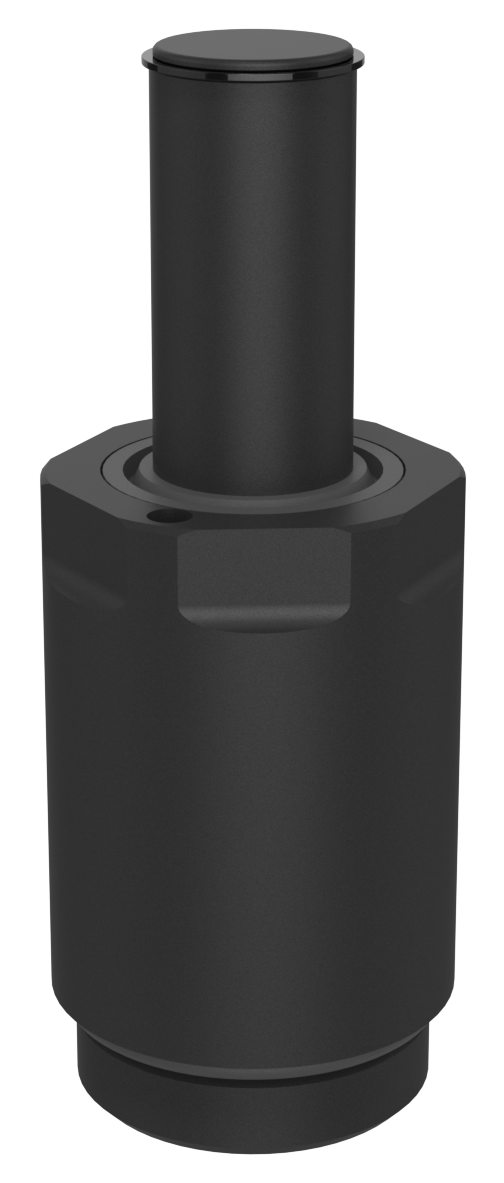

MOR 1500 x 5.00
MOR 1500 systems are avaialble in 11 stroke lengths. Skirt dimension is 18mm (0.72in)
Diagram / specifications section
Preview
| Cylinder Diameter (In) | 2.13 | |
| Manifold Thread | 1-7/8" x 12 | |
| A | Min Length Above Plate (in) | 5.91 |
| S | Stroke Length (in) | 5 |
| Y | Total Length above Plate (in) | 10.91 |
Item specifications
- Initial Force at max. pressure (lbf) 3540.066426996
- Max Charging Pressure (Psi)2001
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)77
- Weight (lb)4.6
